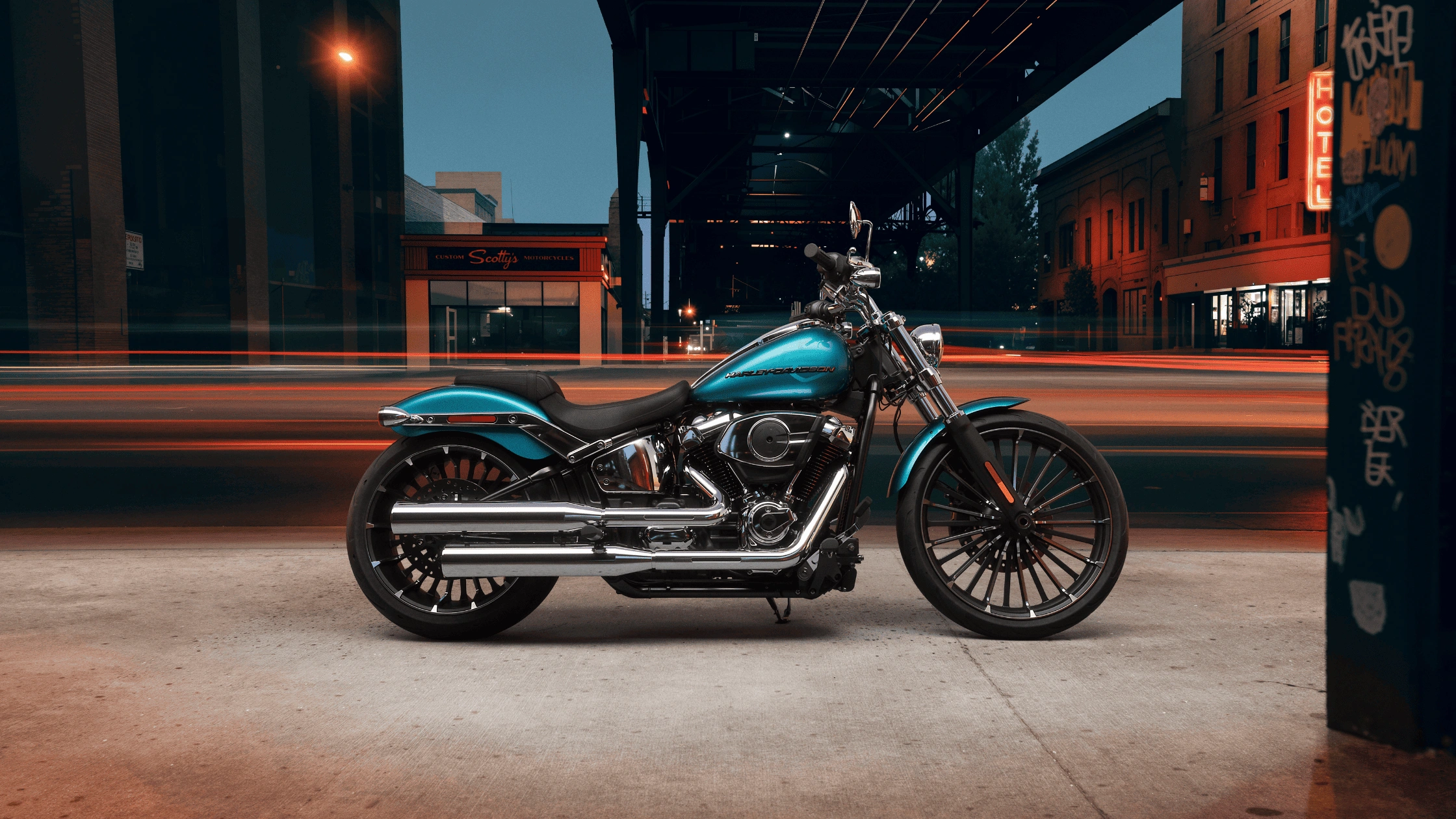

The 2026 Harley-Davidson® Breakout® is engineered as a performance-oriented cruiser with a focus on measurable output, structural rigidity, and integrated rider systems. Its configuration combines a large-displacement V-twin engine, extended chassis geometry, and calibrated suspension components to support controlled acceleration and consistent handling. The model incorporates mechanical and electronic systems designed to operate with minimal rider intervention while maintaining predictable response characteristics.
Engine Configuration and Output Characteristics
The 2026 Harley-Davidson® Breakout® is equipped with the Milwaukee-Eight® 117 Custom engine, featuring a displacement of 117 cubic inches or 1,923 cubic centimeters. The engine uses a pushrod-operated overhead valve system with four valves per cylinder and hydraulic, self-adjusting lifters. This design reduces the need for manual valve adjustment and supports consistent valve timing across varying operating temperatures.
The bore measures 4.075 inches, and the stroke measures 4.5 inches, contributing to the engine’s torque-oriented performance profile. The compression ratio is set at 10.3:1, allowing efficient combustion while maintaining compatibility with recommended fuel grades. The engine produces 126 foot-pounds of torque at 3,000 rpm and 103 horsepower at 4,800 rpm.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection. This system meters fuel precisely based on engine demand, improving combustion efficiency and throttle response. Air intake is supported by a helix-style air cleaner that promotes consistent airflow into the combustion chamber. Exhaust gases are routed through a 2-into-2 staggered exhaust system with an integrated catalyst in the muffler, ensuring emissions compliance while maintaining flow efficiency.
The lubrication system uses a pressurized dry-sump configuration with an oil cooler. This setup maintains oil circulation and temperature control during extended operation, supporting engine longevity and stable performance.
Transmission and Drivetrain Engineering
The drivetrain of the 2026 Harley-Davidson® Breakout® is configured to transfer engine output efficiently to the rear wheel. It features a 6-Speed Cruise Drive® transmission, which provides a range of gear ratios designed for both acceleration and sustained cruising. The transmission supports reduced engine speed at highway velocities, contributing to fuel efficiency and lower mechanical stress.
The primary drive uses a chain system with a 34 to 46 ratio, while the final drive uses a belt system with a 32 to 66 ratio. This combination balances durability with reduced maintenance requirements. The belt drive system operates with less noise and requires less frequent adjustment compared to traditional chain systems.
The clutch is a mechanical 10-plate wet design with assist functionality. This configuration reduces lever effort while maintaining consistent engagement and torque transfer. Gear ratios across all six speeds are calibrated to maintain smooth progression from initial acceleration to top-speed cruising. The ratios include 9.311 in first gear, 6.454 in second, 4.793 in third, 3.882 in fourth, 3.307 in fifth, and 2.79 in sixth.
Frame Construction and Chassis Geometry
The 2026 Harley-Davidson® Breakout® uses a mild steel tubular frame with a rectangular backbone. The frame integrates stamped, cast, and forged junctions that are MIG welded for structural consistency. Aluminum forged fender supports contribute to weight distribution and durability. This construction method provides rigidity while maintaining manageable weight.
The chassis geometry is defined by a rake angle of 34 degrees and a fork angle of 36 degrees. The trail measures 5.7 inches, and the wheelbase extends to 66.7 inches. These specifications support directional stability and predictable steering input. The extended wheelbase also contributes to straight-line tracking at higher speeds.
The swingarm is constructed from mild steel tubular sections with a stamped cross-member and forged axle junctions. It is MIG welded and includes a removable belt spacer, allowing compatibility with the belt-driven final drive system.
Suspension System and Ride Dynamics
The front suspension consists of a 49 mm telescopic fork equipped with dual-bending valve technology and dual-rate springs. This system is designed to respond to varying road conditions by adjusting damping characteristics based on load and movement. The aluminum fork triple clamps provide additional structural support and alignment.
The rear suspension uses a hidden coil-over monoshock with a free piston design. It offers 43 mm of stroke and includes hydraulic preload adjustment. This allows riders to modify suspension settings based on load requirements, such as passenger weight or cargo.
Suspension travel is measured at 5 inches in the front and 3.4 inches in the rear. This configuration supports a balance between ride comfort and handling stability. The suspension components are tuned to maintain tire contact with the road surface while minimizing excessive movement.
Wheel Design, Tire Specifications, and Braking Systems
The 2026 Harley-Davidson® Breakout® features gloss black 26-spoke cast aluminum wheels. The front wheel has a diameter of 21 inches and a width of 3.5 inches, while the rear wheel measures 18 inches in diameter and 8 inches in width. This combination supports a wide rear tire profile, which enhances traction during acceleration.
The front tire specification is 130/60B21, and the rear tire is 240/40R18. Both tires are Michelin® Scorcher 11 models, designed to provide consistent grip and durability across different riding conditions.
The braking system includes a 4-piston fixed front caliper and a 2-piston floating rear caliper. The front rotor measures 11.8 inches in diameter with a thickness of 0.2 inches, while the rear rotor measures 11.5 inches in diameter with a thickness of 0.23 inches. The rotors are black, split 7-spoke floating designs that support heat dissipation and braking consistency.
Anti-lock Braking System functionality is included as standard equipment. This system prevents wheel lock during braking, maintaining traction and control.
Dimensions, Weight Distribution, and Capacity
The overall length of the 2026 Harley-Davidson® Breakout® is 93.5 inches, with a width of 37 inches and a height of 44.3 inches. The seat height is 25.6 inches when laden and 26.2 inches when unladen. These measurements contribute to a low seating position, which supports stability during low-speed maneuvers.
The ground clearance is 4.5 inches, allowing sufficient clearance for standard riding conditions while maintaining a low profile. The total weight is 655 pounds as shipped and 681 pounds in running order. The gross vehicle weight rating is 1,175 pounds, with a front axle rating of 450 pounds and a rear axle rating of 760 pounds.
Fuel capacity is 5 gallons, with a reserve capacity of 1 gallon. Oil capacity with filter is 5 quarts, and the transmission capacity is 1 quart. The primary chain case holds 1.43 quarts of fluid. These capacities support extended operation without frequent refueling or servicing.
Electrical Systems and Instrumentation
The 2026 Harley-Davidson® Breakout® uses a sealed, maintenance-free absorbed glass mat battery rated at 12 volts and 17.5 amp-hours. It provides 310 cold cranking amps at 0 degrees Fahrenheit, supporting reliable engine starts in varying conditions.
The charging system is a three-phase, 48-amp setup capable of producing 364 watts at 13 volts and 900 rpm, with a maximum output of 624 watts at 2,000 rpm. This system supports electrical components and accessory usage.
The starting system uses a 1.6 kilowatt electric starter with solenoid shift engagement. Lighting is fully LED-based, including the headlamp with low and high beam functions, signature position lighting, and bullet-style turn signals for both front and rear.
The instrument cluster features a 4-inch analog speedometer with an integrated digital display. The display provides information including gear position, odometer, fuel level, ride modes, traction control status, ABS status, tire pressure monitoring, cruise control, clock, trip data, range estimation, and tachometer readings.
A USB Type-C power outlet delivers 5 volts at 2.4 amps, allowing device charging during operation.
Rider Assistance Systems and Safety Technologies
The 2026 Harley-Davidson® Breakout® integrates several rider assistance systems designed to improve control and stability. The Anti-lock Braking System prevents wheel lock during braking events. The Traction Control System monitors wheel speed and adjusts engine output to maintain traction.
The Drag-torque Slip Control System reduces rear-wheel slip during aggressive downshifting by managing engine braking forces. The Tire Pressure Monitoring System provides continuous feedback on tire pressure, allowing riders to maintain optimal conditions.
Cornering-specific systems include Cornering Enhanced Anti-lock Braking, Cornering Enhanced Traction Control, and Cornering Drag-torque Slip Control. These systems adjust their operation based on lean angle, improving stability during turning maneuvers.
Fuel Efficiency and Operating Range
The 2026 Harley-Davidson® Breakout® achieves an estimated fuel economy of 49 miles per gallon. This figure is based on a combination of city and highway riding conditions. The 5-gallon fuel tank supports extended travel distances, while the reserve capacity provides additional range when fuel levels are low.
