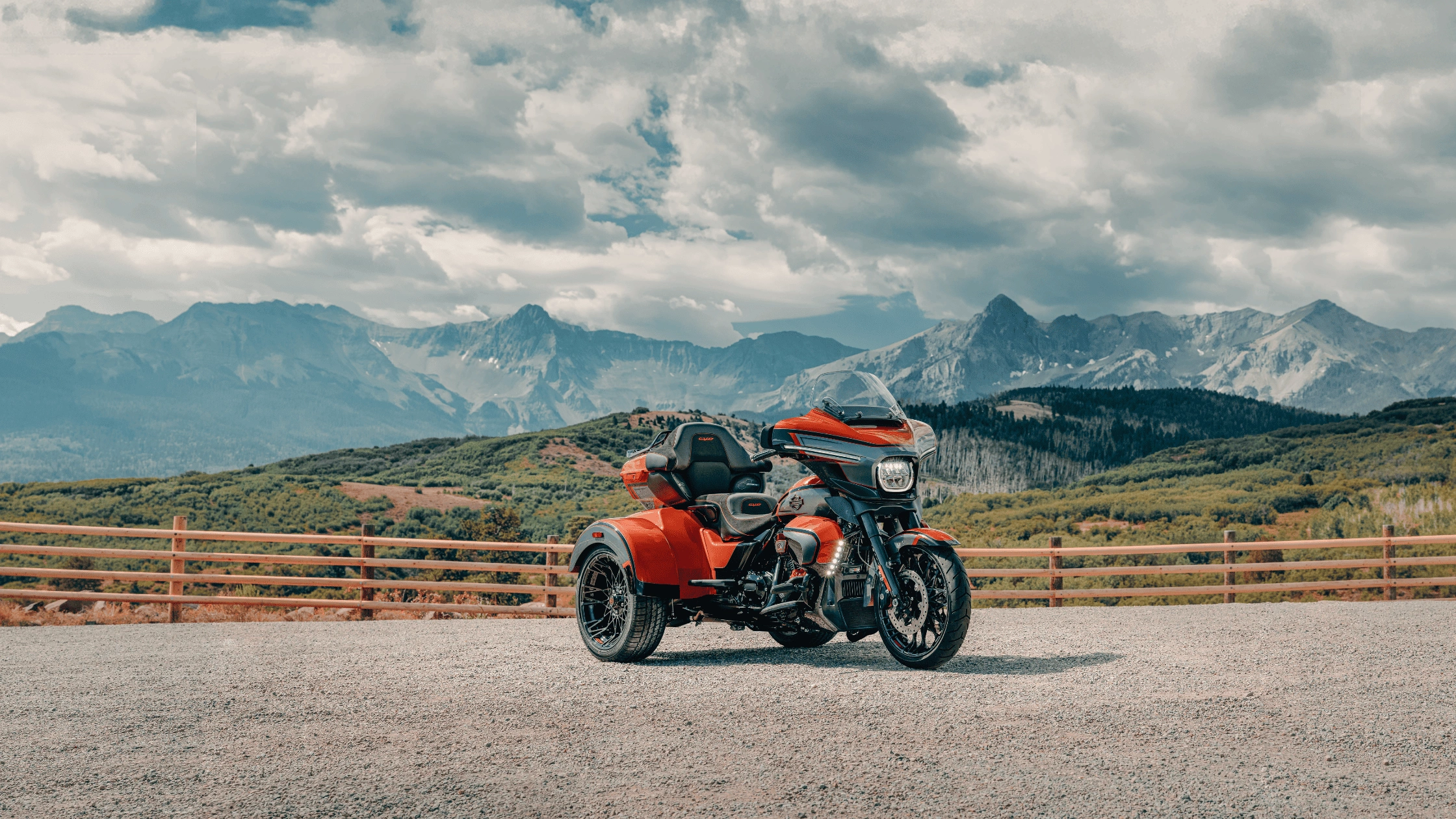

The 2026 Harley-Davidson® CVO™ Street Glide® 3 Limited is a three-wheel touring motorcycle designed for long-distance travel, high-capacity storage, integrated rider technology, and large-displacement V-twin performance. The model combines a factory-custom touring platform with advanced electronic rider assistance systems, premium infotainment equipment, and a Milwaukee-Eight® VVT 121 engine configuration. Its structural design, touring dimensions, and integrated chassis systems support highway stability, passenger comfort, and extended riding capability.
The motorcycle measures 105.7 inches in overall length, 57.3 inches in overall width, and 56.5 inches in overall height. Laden seat height is listed at 27.3 inches, while unladen seat height measures 28.9 inches. The wheelbase extends to 67.7 inches, contributing to stable handling characteristics during highway operation and low-speed maneuvering. Static ground clearance measures 5.1 inches. Steering geometry includes a 26-degree rake and 32-degree fork angle paired with 3.8 inches of trail. These dimensions support consistent steering input and controlled chassis response during touring operation.
Milwaukee-Eight® VVT 121 Engine Specifications
The 2026 Harley-Davidson® CVO™ Street Glide® 3 Limited uses the Milwaukee-Eight® VVT 121 engine. This powertrain produces 121 cubic inches, or 1,977 cc, of displacement. The engine configuration incorporates Variable Valve Timing technology to improve power delivery across a broad RPM range. Factory-rated output reaches 114 horsepower at 4,500 rpm and 138 ft-lb of torque at 3,750 rpm.
The engine uses pushrod-operated overhead valves with hydraulic self-adjusting lifters and four valves per cylinder. The bore measures 4.075 inches, while the stroke measures 4.625 inches. The compression ratio is rated at 11.4:1. Electronic Sequential Port Fuel Injection manages fuel delivery and throttle response. Harley-Davidson® recommends 91-octane fuel or higher for this engine configuration.
The lubrication system uses a pressurized dry-sump design to maintain oil circulation during extended operation. Intake airflow is managed through a washable synthetic felt air cleaner. Exhaust routing uses a 2-1-2 dual exhaust configuration designed to maintain exhaust flow efficiency while supporting touring performance requirements.
Six-Speed Cruise Drive® Transmission and Reverse Function
The drivetrain configuration supports the motorcycle’s touring-focused application and vehicle weight. The 2026 Harley-Davidson® CVO™ Street Glide® 3 Limited uses a six-speed Cruise Drive® transmission with integrated reverse functionality. The reverse system operates electronically through handlebar-mounted controls, improving maneuverability during parking and low-speed directional adjustments.
The transmission pairs with a mechanically actuated 10-plate wet Assist and Slip clutch. This clutch system reduces lever effort while maintaining controlled engagement during acceleration and downshifting. The primary drive ratio is listed at 34/46, while the final belt drive uses a 30/70 ratio.
Gear ratios are configured to balance acceleration with highway cruising efficiency. First gear uses a 10.534 overall ratio. Second gear uses a 7.302 ratio. Third gear is rated at 5.423, while fourth gear measures 4.392. Fifth gear reaches 3.742, and sixth gear uses a 3.0 overall ratio. This arrangement allows reduced engine speed during highway operation while maintaining responsive low-end acceleration.
Touring Chassis and Structural Components
The chassis uses a mild steel square-section backbone frame with twin downtubes. Structural rigidity is supported through the frame design and permanent-mold-cast aluminum swingarm construction. The motorcycle’s running-order weight is listed at 1,283 pounds, while its shipped weight measures 1,243 pounds.
The front suspension uses a 49 mm dual bending valve fork with 4.6 inches of travel. The rear suspension consists of hand-adjustable emulsion shocks providing 3.46 inches of travel. The suspension system supports passenger weight, cargo loads, and long-distance touring operation while maintaining stability during directional changes and highway cruising.
The Gross Vehicle Weight Rating is listed at 1,700 pounds. The Front Gross Axle Weight Rating measures 511 pounds, while the rear Gross Axle Weight Rating reaches 1,189 pounds. The motorcycle also provides 7.1 cubic feet of luggage storage capacity for extended touring use.
Wheel Configuration and Braking Systems
The 2026 Harley-Davidson® CVO™ Street Glide® 3 Limited rides on Dual Grain chrome 14-spoke wheels. Front wheel diameter measures 19 inches with a width of 3.5 inches. Rear wheel diameter measures 18 inches with a width of 7 inches.
The front tire specification uses a Dunlop® Harley-Davidson® Series D408F tire in size 130/60B19 M/C 61H. The rear tire specification is listed as P215/45R18 83T. Tire construction includes a bias blackwall front tire and a radial blackwall rear tire configuration.
Braking equipment includes dual floating front rotors and a fixed rear rotor. Front brake calipers use fixed four-piston 32 mm units, while the rear brake uses a floating 36 mm integrated park brake configuration. The front brake rotor diameter measures 11.8 inches with a 0.197-inch rotor thickness. The rear brake diameter also measures 11.8 inches, paired with 0.276-inch rotor thickness.
Anti-Lock Braking System functionality is included as standard equipment. Electronic Linked Braking technology distributes braking force across the system to improve stability during braking events.
Integrated Rider Safety Technologies
The motorcycle incorporates multiple electronic rider assistance systems designed to improve traction management and braking stability. Standard Traction Control System functionality monitors wheel slip during acceleration. Drag-Torque Slip Control System technology assists during aggressive downshifting and throttle reduction.
Vehicle Hold Control is included to maintain brake pressure during incline starts and stopping situations. Tire Pressure Monitoring System functionality continuously monitors tire inflation status and relays information through the display interface.
Cornering-specific electronic systems are also integrated into the platform. Cornering Enhanced Anti-Lock Braking System functionality adjusts braking response during cornering situations. Cornering Enhanced Electronic Linked Braking modifies brake force distribution based on chassis conditions and directional input. Cornering Enhanced Traction Control System technology monitors wheel traction during cornering acceleration, while Cornering Drag-Torque Slip Control System functionality assists with rear-wheel stability during deceleration and downshifting transitions.
Electrical Output and Lighting Systems
The electrical system uses a sealed maintenance-free 12-volt battery rated at 28 amp-hours and 405 cold cranking amps. Charging output comes from a three-phase 48-amp charging system capable of producing up to 625 watts at 13 volts.
Starting functionality uses a 1.6 kW electric starter with solenoid shift starter motor engagement. LED lighting is integrated throughout the motorcycle, including the headlamp, tail lamp, stop lamp, front signal lights, and rear turn signals. Additional LED fog lamps are integrated into the lower fairings to improve visibility during reduced-light riding conditions.
Digital gauges are integrated directly into the primary display system. Vehicle information monitoring includes air temperature, oil pressure, and Harley-Davidson® Engine Idle Temperature Management System data.
The 2026 Harley-Davidson® CVO™ Street Glide® 3 Limited also includes a 15-watt USB-C power outlet located inside the media storage compartment. This allows device charging and accessory integration during travel operation.
Skyline™ OS Infotainment and Connectivity
The infotainment platform uses Harley-Davidson® Skyline™ OS technology paired with a 12.3-inch full-color TFT display. The display integrates navigation, communication systems, media controls, and vehicle data into a centralized interface.
Audio output is delivered through a six-speaker configuration. The system includes two 6.5-inch fairing speakers, two 6.5-inch Tour-Pak® speakers, and two 6.5-inch lower fairing speakers. Amplification output is rated at 125 watts across four channels and 150 watts across two channels.
AM and FM radio functionality are included as standard equipment. USB-C and MTP smartphone compatibility allow media playback and device integration through the inner fairing connection point. Bluetooth® functionality supports phone connectivity, headset pairing, and media streaming.
Wireless and wired Apple CarPlay® compatibility is integrated into the infotainment system. The motorcycle also supports rider and passenger intercom communication when paired with compatible Harley-Davidson® Packtalk Edge wireless Bluetooth® headsets.
Embedded GPS navigation is included as standard equipment. Navigation functionality supports traffic and weather information through Wi-Fi hotspot integration where subscription services are available.
Fuel Capacity and Touring Efficiency
The fuel tank provides a total capacity of 6 gallons. Reserve fuel capacity is listed at 1 gallon. Estimated fuel economy is rated at 39 mpg, or approximately 6 l/100 km, using estimated city and highway testing methods.
Fluid capacities include 5 quarts of engine oil with filter, 1.22 quarts of transmission fluid, 1.1 quarts for the primary chain case, and 0.82 quarts of coolant. These specifications support extended-distance touring requirements and sustained operating performance during long-duration rides.
