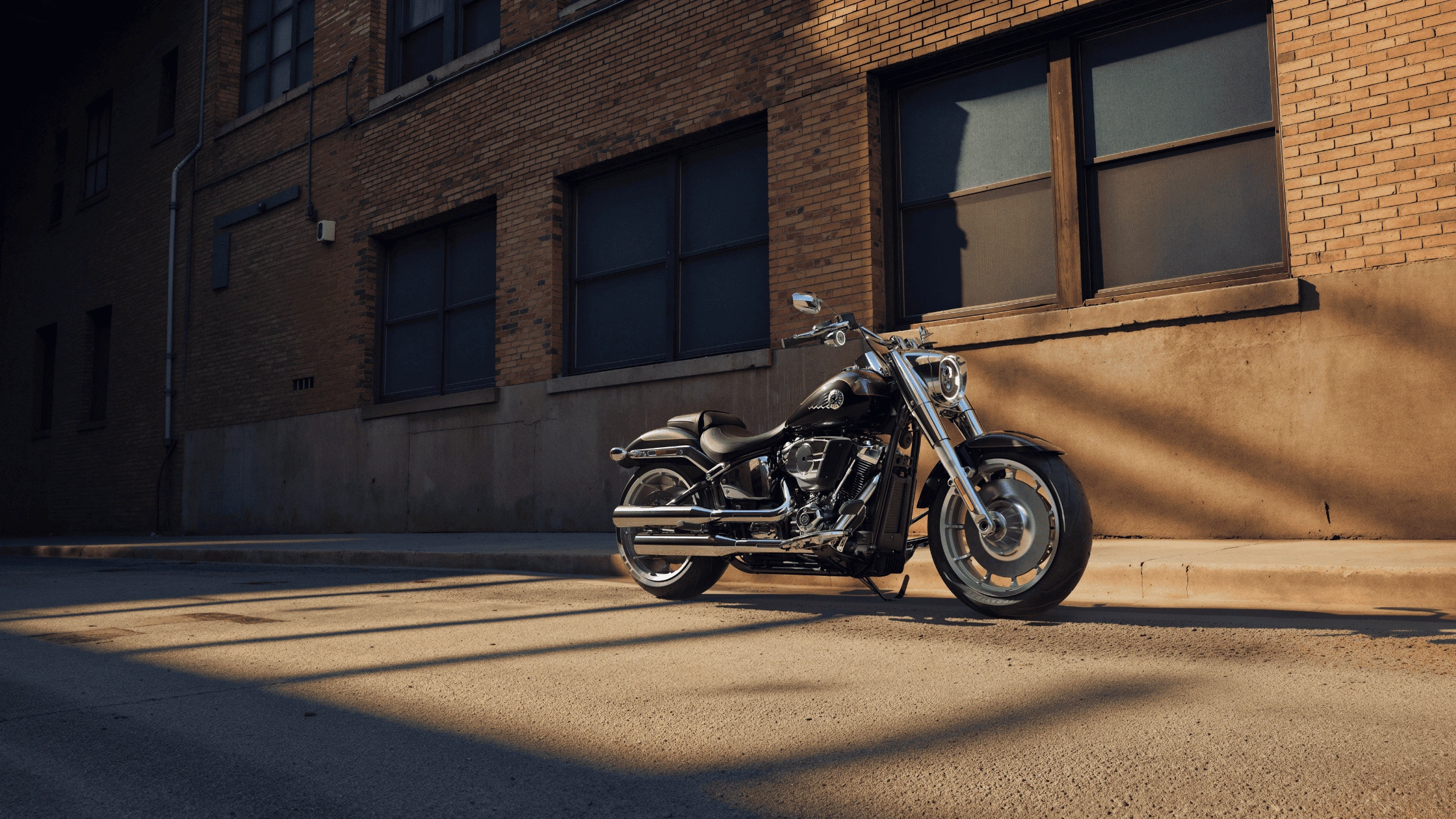

The 2026 Harley-Davidson® Fat Boy® is engineered as a large-displacement cruiser with a focus on mechanical consistency, structural rigidity, and integrated rider control systems. The model uses a Softail®-based platform with defined geometry, a low seat height, and a wide tire configuration to maintain stability during straight-line operation and controlled cornering. Its dimensions, drivetrain configuration, and suspension layout support predictable handling and consistent power delivery. The motorcycle is configured to balance torque output, chassis stiffness, and braking control while maintaining rider accessibility through a low center of gravity and wide stance.
Milwaukee-Eight® 117 Engine Configuration and Output Characteristics
The 2026 Harley-Davidson® Fat Boy® is equipped with a Milwaukee-Eight® 117 Custom engine that delivers a displacement of 117 cubic inches or 1,923 cubic centimeters. The engine uses a bore of 4.075 inches and a stroke of 4.5 inches, producing a compression ratio of 10.3 to 1. This configuration supports consistent combustion efficiency and torque generation across low and mid-range engine speeds.
The engine produces 126 foot-pounds of torque at 3,000 rpm and achieves a maximum output of 103 horsepower at 4,800 rpm. The torque curve supports steady acceleration without requiring frequent gear changes. The valvetrain uses a pushrod-operated system with overhead valves and hydraulic self-adjusting lifters. Each cylinder contains four valves, improving airflow and combustion efficiency while reducing the need for manual valve adjustment.
Fuel delivery is controlled through Electronic Sequential Port Fuel Injection, which meters fuel based on throttle input and engine conditions. The intake system includes a Helix-style air cleaner designed to maintain airflow consistency. Exhaust gases are routed through a 2-into-2 staggered exhaust system that incorporates a catalyst within the muffler assembly. The lubrication system is pressurized and uses a dry-sump configuration with an integrated oil cooler to regulate operating temperatures during extended operation.
Drivetrain Engineering and Gear Ratio Distribution
Power from the engine is transferred through a primary chain drive with a 34 to 46 ratio. The clutch system is a mechanical, 10-plate wet clutch that includes assist functionality to reduce lever effort during operation. This setup provides consistent engagement and durability under varying load conditions.
The transmission is a 6-speed Cruise Drive® system designed to distribute torque across a wide speed range. The first gear ratio is 9.311, followed by 6.454 in second gear, 4.793 in third gear, 3.882 in fourth gear, 3.307 in fifth gear, and 2.79 in sixth gear. These ratios allow the engine to operate efficiently at both low speeds and highway cruising conditions. The final drive uses a belt system with a 32 to 66 ratio, which reduces maintenance requirements and supports smooth power transfer.
Frame Construction and Suspension Dynamics
The frame is constructed from mild steel using a tubular design with a rectangular backbone. It integrates stamped, cast, and forged junctions with MIG welding to maintain structural rigidity. Aluminum forged fender supports are included to reduce weight while maintaining strength.
The swingarm is also constructed from tubular steel and incorporates a stamped cross-member and forged axle junctions. It includes a removable belt spacer for maintenance access. This design supports stability and durability during extended use.
The front suspension consists of a 49 mm telescopic fork with dual-bending valve technology and dual-rate springs. This configuration improves damping response and maintains front-end stability across varying road conditions. The rear suspension uses a hidden coil-over monoshock with a 43 mm stroke and hydraulic preload adjustment. Rear suspension travel measures 3.4 inches, while front suspension travel measures 5.1 inches. This setup allows the motorcycle to absorb road irregularities while maintaining consistent chassis geometry.
Steering Geometry and Dimensional Specifications
The steering geometry includes a rake angle of 30 degrees and a fork angle of 32 degrees, with a trail measurement of 4.1 inches. These parameters contribute to stable steering response and controlled handling characteristics. The wheelbase measures 65 inches, supporting straight-line stability at higher speeds.
The overall length of the motorcycle is 93.1 inches, with a width of 40 inches and a height of 44.1 inches. The laden seat height is 25.9 inches, while the unladen seat height is 26.6 inches. Ground clearance is measured at 4.9 inches, providing a balance between a low profile and adequate clearance for standard road conditions.
The motorcycle has a running weight of 694 pounds and a gross vehicle weight rating of 1,175 pounds. The front axle weight rating is 450 pounds, and the rear axle weight rating is 760 pounds. Fuel capacity is 5 gallons, with a reserve capacity of 1 gallon. Estimated fuel economy is 47 miles per gallon.
Wheel Design, Tire Specifications, and Braking Performance
The 2026 Harley-Davidson® Fat Boy® uses Lakester cast aluminum wheels with a machined finish. Both front and rear wheels have a diameter of 18 inches. The front wheel width measures 4.5 inches, while the rear wheel width measures 8 inches, supporting a wide rear tire profile.
The tires are Michelin® Scorcher 11 models, designed for both front and rear applications. The front tire specification is 160 over 60 R18, and the rear tire specification is 240 over 40 R18. This combination enhances traction and maintains stability under acceleration and braking.
The braking system includes a 4-piston fixed caliper at the front and a 2-piston floating caliper at the rear. The front brake rotor has a diameter of 11.8 inches and a thickness of 0.2 inches. The rear rotor measures 11.5 inches in diameter with a thickness of 0.23 inches. Both rotors use a split 7-spoke floating design to manage heat and maintain consistent braking performance.
An anti-lock Braking System is included as standard equipment, preventing wheel lock during sudden braking. The system works in coordination with other electronic rider aids to maintain stability.
Electrical System, Lighting, and Instrumentation
The electrical system is powered by a sealed, maintenance-free absorbed glass mat battery rated at 12 volts and 17.5 amp-hours. The battery provides 310 cold cranking amps at zero degrees Fahrenheit. Charging is handled by a three-phase 48-amp system capable of producing up to 624 watts of power at higher engine speeds.
The starting system uses a 1.6-kilowatt electric starter motor with solenoid engagement, ensuring reliable engine start. Lighting components are fully LED-based, including the headlamp, taillamp, and turn signals. The headlamp provides both low- and high-beam functionality with integrated signature lighting for visibility.
Instrumentation is provided through a 5-inch analog speedometer combined with a digital display. The display includes gear position, odometer, fuel level, ride modes, heated gear indicators, traction control status, anti-lock braking indicators, tire pressure monitoring data, cruise control status, clock, trip information, range estimation, and tachometer readings. A USB-C power outlet is included with an output of 5 volts at 2.4 amps for device charging.
Integrated Rider Control Systems and Safety Technology
The 2026 Harley-Davidson® Fat Boy® includes multiple rider assistance systems designed to maintain control under varying riding conditions. An anti-lock Braking System is standard and works to prevent wheel lock during braking. Traction Control System monitors wheel speed and adjusts power delivery to reduce wheel slip. Drag-torque Slip Control System manages engine braking to prevent rear-wheel instability during deceleration.
Tire Pressure Monitoring System provides continuous feedback on tire pressure levels, allowing the rider to maintain proper inflation. The motorcycle also includes cornering-enhanced versions of ABS, traction control, and drag-torque slip control. These systems adjust operation based on lean angle to maintain stability during cornering maneuvers.
Lean angles are measured at 25.6 degrees on both the left and right sides, indicating consistent cornering capability. The integration of these systems supports controlled handling and improved rider awareness during operation.
Functional Technology Integration and Operational Interface
The 2026 Harley-Davidson® Fat Boy® is configured without a full infotainment system, focusing instead on essential operational data and rider interface elements. The absence of additional media systems reduces system complexity and maintains focus on core riding functions.
The digital interface within the instrument cluster provides access to ride modes and system indicators without requiring external devices. The inclusion of USB-C connectivity supports device charging but does not extend to integrated navigation or communication systems. This configuration maintains a streamlined control layout and reduces potential distractions.
