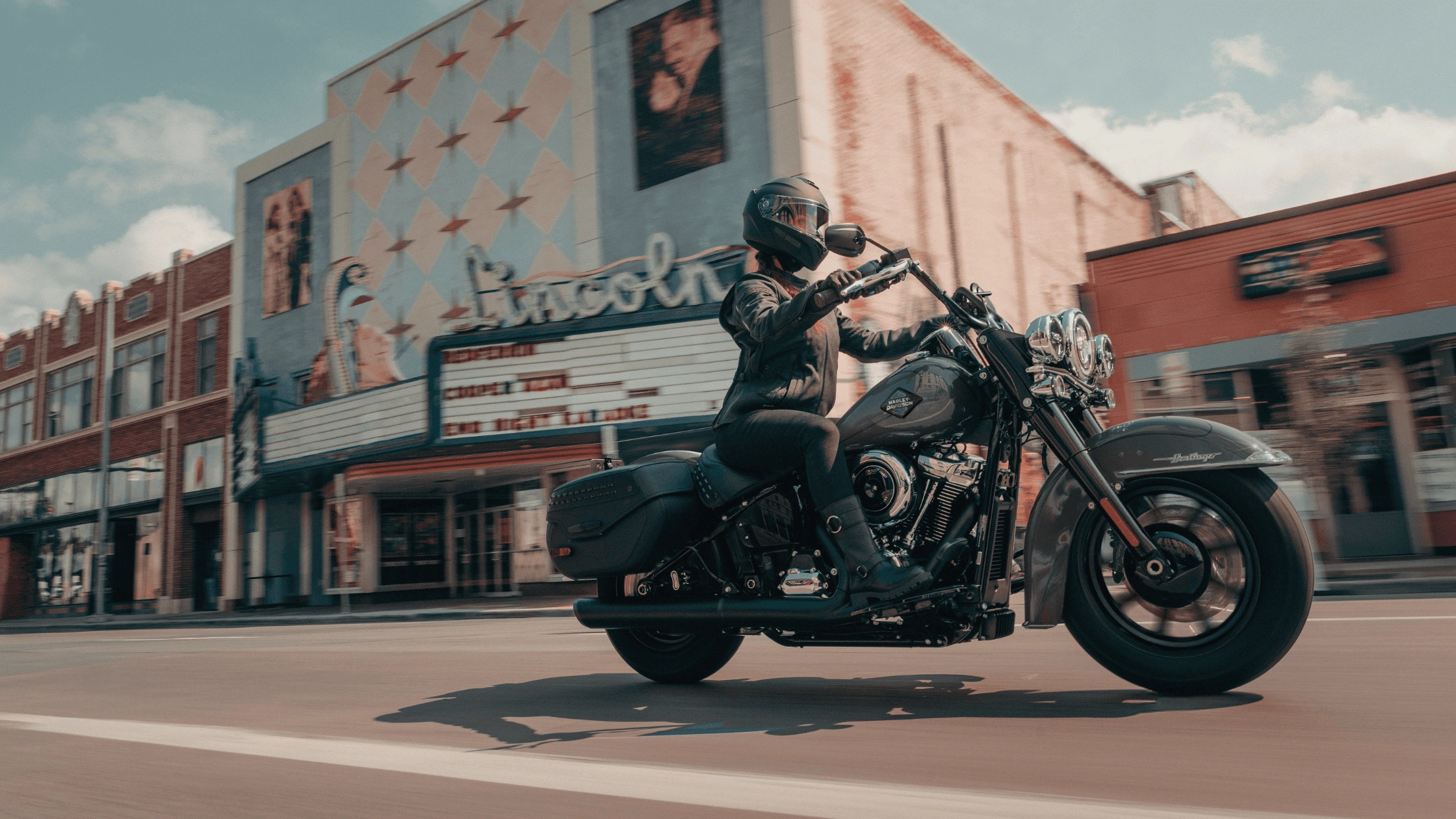

The 2026 Harley-Davidson® Heritage Classic is engineered as a full-size cruiser designed for stable highway travel, consistent low-speed handling, and long-distance usability. Its technical configuration combines a large-displacement V-twin engine, a steel tubular chassis, and modern rider-assist systems that support predictable operation across varied road conditions. The model emphasizes mechanical simplicity paired with updated electronic controls. Dimensionally, the motorcycle measures 95.1 inches in length, 36.6 inches in overall width, and 54.7 inches in height, creating a long and stable platform suited to touring-oriented riding. Seat height is configured at 26.3 inches in the laden condition, helping riders maintain easier ground contact when stationary. Ground clearance measures 4.7 inches, balancing a low center of gravity with practical clearance during operation.
The 2026 Harley-Davidson® Heritage Classic is powered by the Milwaukee-Eight® 117 Classic engine and integrates a six-speed drivetrain, modern braking control systems, LED lighting, and electronic monitoring functions. The design reflects a focus on mechanical durability, rider control, and predictable performance rather than highly complex infotainment systems. Every major component is intended to support stable power delivery, manageable handling characteristics, and simplified rider interaction.
Engine Architecture and Mechanical Performance
The engine configuration consists of a Milwaukee-Eight® 117 Classic V-twin with a displacement of 117 cubic inches, equivalent to 1,923 cubic centimeters. It uses pushrod-operated overhead valves with hydraulic self-adjusting lifters and four valves per cylinder. This arrangement reduces valve maintenance requirements while maintaining consistent mechanical operation across long service intervals. The bore measures 4.075 inches and the stroke measures 4.5 inches, producing a long-stroke design that prioritizes torque output at lower engine speeds.
The compression ratio is rated at 10.3:1, supporting efficient combustion while maintaining compatibility with recommended premium-grade fuel. Fuel delivery uses Electronic Sequential Port Fuel Injection, which helps maintain smooth throttle response and stable idle behavior across varying temperature conditions. Air intake passes through a 9-inch round air cleaner that includes washable fiberglass filter media, allowing repeatable airflow characteristics during operation.
Power output is rated at 98 horsepower at 4,600 rpm, while torque reaches 120 ft-lb at 2,500 rpm. The lower torque peak contributes to strong acceleration during starts and passing situations without requiring high engine speeds. The lubrication system operates as a pressurized dry-sump system with an oil cooler, supporting thermal stability during prolonged riding. Exhaust flow is managed through a 2-into-1 system with a catalyst integrated into the header, aligning emissions control with consistent exhaust flow behavior.
Transmission, Final Drive, and Gear Ratios
Power transfer occurs through a six-speed Cruise Drive® transmission that supports smooth engagement and stable cruising efficiency. The clutch uses a mechanical 10-plate wet design with assist and conventional operation, which helps reduce lever effort while maintaining strong engagement under load. Primary drive is chain-driven with a 34/46 ratio, while the final power transfer uses a belt drive with a 32/66 ratio. The belt final drive contributes to reduced maintenance and quiet operation compared to chain-driven alternatives.
The gear ratio spread supports both low-speed maneuvering and highway travel. First gear provides an overall ratio of 9.311, allowing controlled launches from standstill. Ratios progressively step down through second at 6.454, third at 4.793, fourth at 3.882, fifth at 3.307, and sixth at 2.79. The tall sixth gear reduces engine speed during sustained cruising, contributing to mechanical efficiency and lower vibration levels. The drivetrain configuration supports smooth torque delivery and predictable throttle response across riding conditions.
Chassis Construction and Suspension Design
The frame of the 2026 Harley-Davidson® Heritage Classic uses mild steel tubular construction with a rectangular-section backbone. Stamped, cast, and forged junctions provide structural reinforcement, while MIG welding ensures consistent assembly. Aluminum forged fender supports reduce localized weight while maintaining rigidity. The swingarm also uses mild steel tubular construction with stamped cross-members and forged axle junctions, reinforcing stability under acceleration and braking loads.
Front suspension consists of a dual-bending valve 49 mm telescopic fork with aluminum triple clamps and dual-rate springs. This design helps manage front-end dive during braking while maintaining compliance over uneven surfaces. Rear suspension uses a hidden free-piston coil-over monoshock with a 56 mm stroke and hydraulic preload adjustment, allowing load compensation when carrying additional gear or a passenger. Suspension travel measures 5.1 inches in the front and 4.4 inches in the rear, supporting comfort and chassis control across long riding distances.
Wheelbase measures 64.2 inches, contributing to straight-line stability. Steering geometry includes a 30-degree rake and 5.5-inch trail, balancing slow-speed maneuverability with highway composure. The combined geometry and suspension setup create predictable steering input and controlled weight transfer during directional changes.
Wheels, Tires, and Braking Specifications
The 2026 Harley-Davidson® Heritage Classic rides on 16-inch front and rear wheels with black 9-spoke cast aluminum construction. Optional tubeless laced wheels with 36 bright spokes are also available depending on regional configurations. Tire specifications include a 130/90B16 front tire and a 150/80B16 rear tire, both from the Dunlop® Harley-Davidson® Series bias blackwall lineup. These tire dimensions support stable contact patches and balanced steering response.
Front braking uses a 4-piston fixed caliper paired with an 11.8-inch rotor. Rear braking uses a 2-piston floating caliper with an 11.5-inch rotor. Rotor construction uses a solid uniform expansion design for consistent thermal behavior. Anti-lock Braking System functionality is standard, supporting controlled braking during reduced traction conditions. Lean angles are rated at 27.4 degrees on both sides, reflecting cruiser-oriented geometry while maintaining usable cornering clearance. This braking and wheel package emphasizes stability and repeatable stopping performance rather than aggressive sport handling.
Electrical System and Instrumentation
Electrical power management is handled by a sealed absorbed glass mat battery rated at 12 volts, 17.5 Ah, and 310 cold-cranking amps at zero degrees Fahrenheit. Charging comes from a three-phase 48-amp system delivering 364 watts at 900 rpm and up to 624 watts at higher engine speeds. Starting uses a 1.6 kW electric starter with solenoid shift engagement, supporting reliable ignition under varied conditions.
Lighting components are fully LED-based. The headlamp integrates low and high beam functionality with a signature position lamp. Rear lighting includes LED tail and stop lamps, while front and rear signals use LED bullet-style indicators. LED auxiliary fog lamps improve visibility during low-light riding situations.
Instrumentation includes a 5-inch analog speedometer combined with a digital interface. The display provides gear position, odometer data, fuel level, ride mode information, traction control status, ABS indicators, tire pressure monitoring, cruise control, trip metrics, range calculations, and tachometer information. This layout allows riders to access operational data without requiring large display screens or separate infotainment modules. A USB-C power outlet provides 5V output at 2.4 amps for accessory charging.
Rider Safety Technology and Control Systems
The 2026 Harley-Davidson® Heritage Classic integrates multiple electronic rider-assist systems intended to improve stability and traction management. Standard systems include Anti-lock Braking System, traction control, drag-torque slip control, and tire pressure monitoring. These features help regulate wheel behavior during acceleration, braking, and downshifting.
Cornering-enhanced systems are also included. Cornering Enhanced ABS adjusts braking response relative to lean angle. Cornering Enhanced Traction Control supports rear-wheel stability during acceleration while leaned over. Cornering Drag-Torque Slip Control helps reduce instability during abrupt deceleration or aggressive gear changes. These systems function in the background without requiring complex rider interaction.
The electronic linked braking and vehicle hold control are not included, reflecting a configuration focused on essential rider aids rather than extensive automation. The overall safety package emphasizes predictable intervention and stable control across changing road surfaces.
Fuel Capacity and Operational Efficiency
Fuel capacity is rated at 5 gallons, with a reserve warning triggered around 1 gallon remaining. This capacity supports extended travel intervals between fuel stops while maintaining weight distribution appropriate for a cruiser platform. Oil capacity measures 5 quarts with the filter installed, while transmission capacity is 1 quart and primary chain case capacity is 1.25 quarts. These volumes support consistent lubrication across drivetrain components during prolonged operation.
The motorcycle achieves an estimated fuel economy rating of 47 miles per gallon under combined city and highway testing conditions. This level of efficiency, combined with the 5-gallon tank, supports practical touring range without requiring frequent refueling. Cooling is air-based, and there is no liquid coolant system, simplifying maintenance and reducing mechanical complexity.
