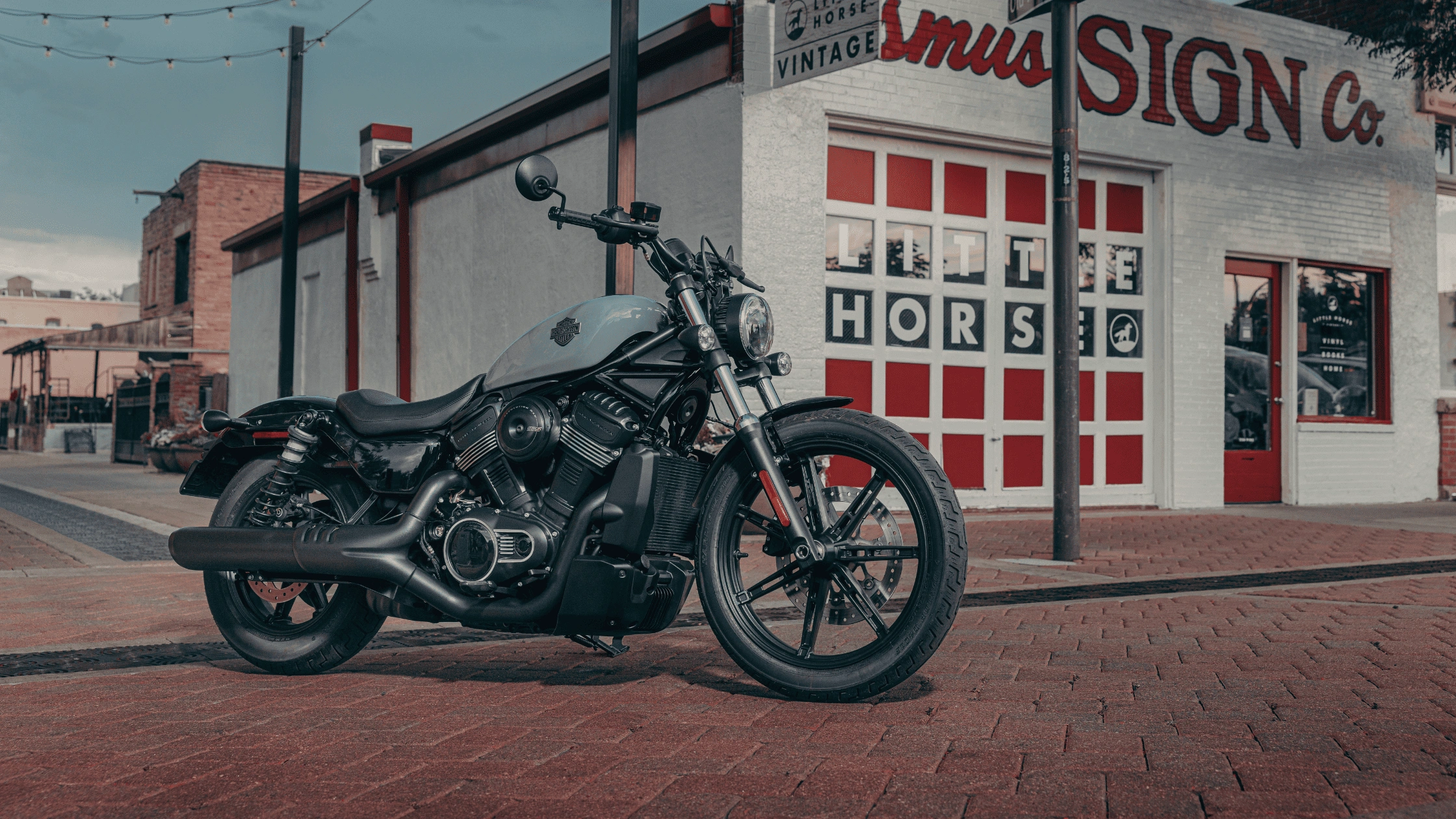

The 2026 Harley-Davidson® Nightster® combines a compact Sportster® platform with the liquid-cooled Revolution® Max 975T engine, a lightweight chassis configuration, and a collection of modern rider-assistance systems. The motorcycle uses a stressed-member frame design, dual overhead camshaft engine architecture, Electronic Sequential Port Fuel Injection, and standard Anti-lock Brake System technology. Its dimensions, suspension geometry, drivetrain configuration, and electronic rider aids support responsive handling and controlled street performance.
The 2026 Harley-Davidson® Nightster® measures 88.6 inches in length, 33 inches in overall width, and 43.5 inches in overall height. The motorcycle uses a 60.8-inch wheelbase and a 30-degree rake angle paired with a 28-degree fork angle. Trail measurement is listed at 5.4 inches. Laden seat height measures 27.1 inches, while unladen seat height measures 27.8 inches. Static ground clearance measures 4.3 inches. Lean angle reaches 32 degrees on both the right and left sides. These specifications create a low-profile riding position with balanced steering geometry intended for street operation and urban maneuverability.
Revolution® Max 975T Engine Configuration
The 2026 Harley-Davidson® Nightster® uses the Revolution® Max 975T engine platform. This liquid-cooled V-twin engine displaces 975 cc and features a bore of 3.82 inches and a stroke of 2.6 inches. Compression ratio is rated at 12:1. The engine produces 91 horsepower at 7,500 rpm and 72 ft-lb of torque at 5,750 rpm.
The engine uses chain-driven dual overhead camshafts and hydraulic self-adjusting lifters. Intake variable valve timing is incorporated into the cylinder head design to support airflow management across multiple engine speeds. Each cylinder contains four valves. The combination of DOHC architecture and intake VVT contributes to controlled combustion efficiency and stable throttle response.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection. The induction system includes a downdraft intake design with tuned velocity stacks and washable filter media. Exhaust routing uses a 2-into-1 layout with a catalyst integrated into the header assembly. The lubrication system uses a semi-dry sump configuration to support compact engine packaging and temperature management.
The 2026 Harley-Davidson® Nightster® uses a liquid-cooling system with a coolant capacity of 2.22 quarts. Oil capacity with filter is rated at 4.75 quarts. The motorcycle requires premium fuel with a recommended octane rating of 91 or higher.
Transmission and Drivetrain Engineering
Power is transferred through a 6-speed transmission connected to a gear-driven primary drive system with a 49/89 ratio. Final drive operation uses a belt system with a 34/80 ratio. The drivetrain configuration supports consistent power transfer and reduced drivetrain maintenance requirements compared to chain-driven alternatives.
The clutch assembly uses a mechanical 8-plate wet clutch with assist-and-slip functionality and a 1090N rating. The assist-and-slip clutch design helps reduce clutch lever effort while supporting controlled rear-wheel behavior during aggressive downshifts or deceleration.
Overall transmission ratios are configured to balance acceleration and highway efficiency. First gear is rated at 12.21, second gear at 9.022, third gear at 6.994, fourth gear at 5.641, fifth gear at 4.731, and sixth gear at 4.131. This gear spacing allows the engine to maintain usable torque throughout multiple riding conditions and speed ranges.
Chassis Structure and Frame Design
The 2026 Harley-Davidson® Nightster® uses a stressed-member, high-strength, low-alloy steel trellis frame. The frame incorporates stamped, cast, and forged junctions combined with MIG-welded construction methods. An aluminum forged mid-structure section contributes to structural rigidity while controlling overall weight.
The swingarm uses a rectangular tube-section steel design with a stamped cross-member and MIG-welded construction. This arrangement supports rear suspension stability and drivetrain alignment under acceleration and braking loads.
Weight as shipped is listed at 462 pounds. Running order weight is rated at 481 pounds. Gross Vehicle Weight Rating is specified at 922 pounds. Front Gross Axle Weight Rating is listed at 353 pounds, while the rear axle rating is 595 pounds. The compact dimensions and moderate running weight contribute to the motorcycle’s responsive handling characteristics.
Suspension Calibration and Wheel Components
Front suspension uses 41 mm SHOWA® Dual Bending Valve conventional forks paired with aluminum triple clamps. Front suspension travel measures 4.5 inches. The SHOWA® fork design supports controlled damping behavior during braking, acceleration, and uneven pavement transitions.
Rear suspension uses dual outboard direct-acting emulsion-technology shock absorbers with coil springs. Rear shocks include threaded collar preload adjustment for suspension tuning based on rider preference or operating conditions. Rear suspension travel measures 3 inches.
The 2026 Harley-Davidson® Nightster® uses aluminum cast wheels finished in satin black. Front wheel diameter measures 19 inches with a width of 2.5 inches. Rear wheel diameter measures 16 inches with a width of 4.25 inches. Tire specifications include a Dunlop® Harley-Davidson® Series D401F front tire in a 100/90-19 configuration and a D401T rear tire in a 150/80B16 configuration. The wheel and tire combination contributes to directional stability and balanced steering response.
Braking Components and Rider-Control Systems
Front braking uses an axially mounted 4-piston caliper paired with a single floating hub-mounted rotor measuring 12.6 inches in diameter and 0.23 inches in thickness. Rear braking uses a floating single-piston caliper with a 10.2-inch rotor measuring 0.2 inches thick.
Anti-lock Brake System functionality is included as standard equipment. The ABS system helps maintain wheel rotation during emergency braking or low-traction conditions. The 2026 Harley-Davidson® Nightster® also includes Traction Control System functionality to manage rear-wheel slip during acceleration. Drag-torque Slip Control System technology is also standard. DSCS functionality assists with rear-wheel stability during abrupt deceleration and downshifting events.
Electronic Linked Braking, Vehicle Hold Control, Tire Pressure Monitoring System, and wheel-lift mitigation systems are not included on this model. Cornering-enhanced rider safety systems are also not included.
Electrical Capacity and Lighting Systems
The 2026 Harley-Davidson® Nightster® uses a sealed maintenance-free absorbed glass mat battery rated at 12 volts, 12 amp-hours, and 225 cold cranking amps at 0 degrees Fahrenheit. Charging is handled by a three-phase 45-amp system. Output is rated at 300 watts at 13 volts and 1,200 rpm, with maximum output reaching 585 watts at 13 volts and 2,250 rpm.
Engine starting uses a 0.9 kW electric direct-drive starter motor system. Lighting components are fully LED-based. The headlamp assembly includes low-beam and high-beam operation with signature position lighting integrated into the housing. Rear lighting and turn signals also use LED technology. Front and rear signal lamps use bullet-style housings.
The electrical system supports multiple rider-information alerts and operational indicators integrated into the instrument display. These include coolant temperature alerts, ABS alerts, traction control indicators, low fuel indicators, battery voltage alerts, high-beam indicators, oil pressure alerts, service indicators, check engine indicators, and neutral position indicators.
Instrumentation and Display Functions
Instrumentation is centered around a 4-inch analog display combined with a segmented LCD screen. The display area measures 102 mm and provides multiple vehicle information functions within a compact interface.
The display system includes a speedometer, digital tachometer, segmented fuel gauge, fuel range information, gear position indicator, trip A and trip B functions, and selectable odometer units in miles or kilometers. Riders can also access a 12-hour or 24-hour clock display and ride mode indication information through the instrument system.
The 2026 Harley-Davidson® Nightster® does not include a dedicated infotainment system, integrated navigation system, Bluetooth® connectivity, USB interface, headset integration, or audio speakers. AM, FM, weather band, and intercom functions are also not included. The display system remains focused on operational data and riding information rather than multimedia integration.
Fuel Efficiency and Operational Specifications
Estimated fuel economy is rated at 52 mpg using estimated city and highway testing methods. Fuel capacity measures 3.1 gallons, with a reserve fuel warning activated at approximately 0.8 gallons remaining.
The 2026 Harley-Davidson® Nightster® uses Dunlop® Harley-Davidson® Series bias blackwall tires and a belt-driven final drive configuration to support long-term operating consistency.
The compact dimensions, moderate wheelbase, low seat height, and liquid-cooled engine configuration position the 2026 Harley-Davidson® Nightster® as a performance-oriented standard motorcycle with an emphasis on responsive acceleration, low-speed maneuverability, and controlled rider-input behavior.
