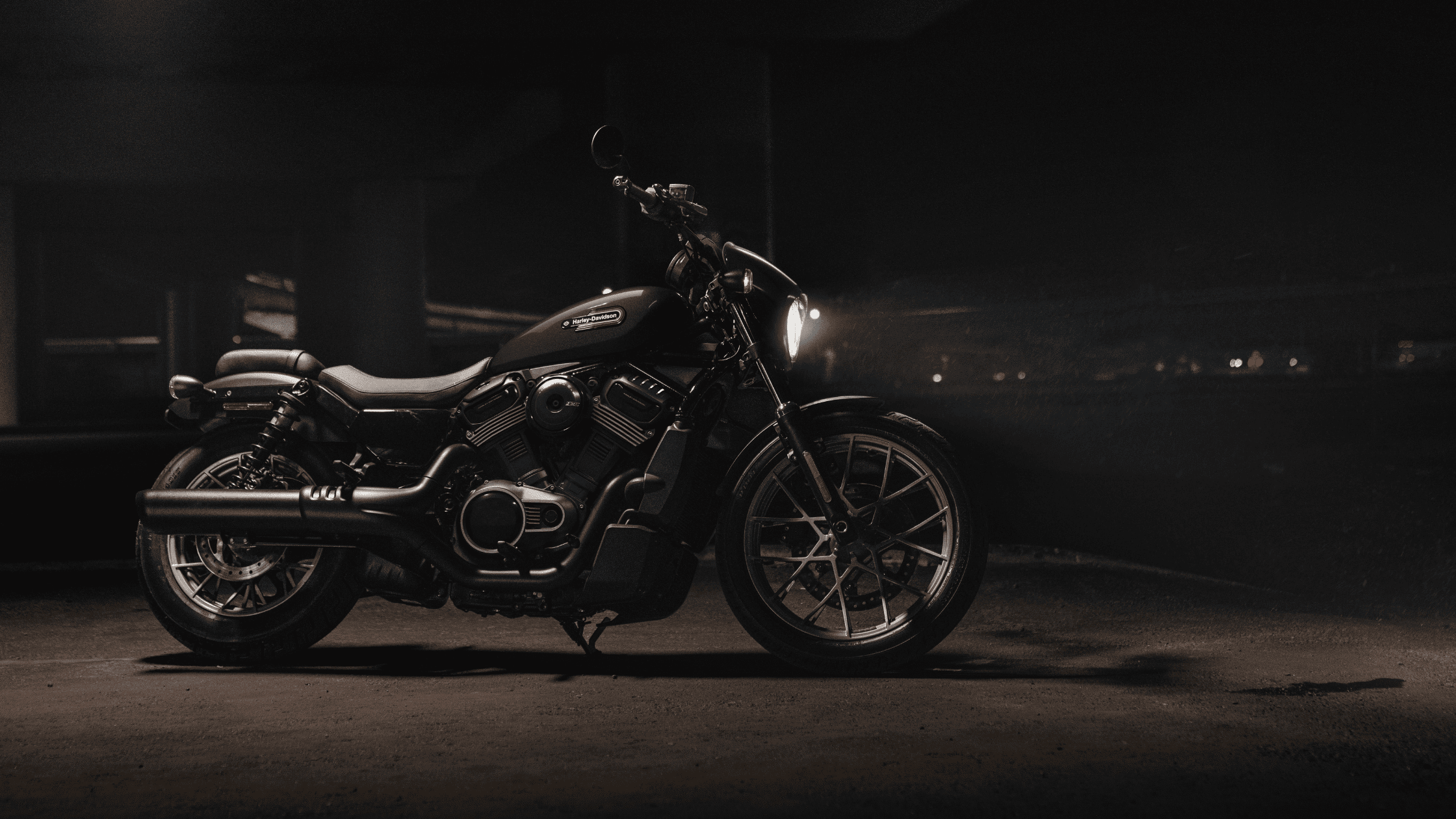

The 2026 Harley-Davidson® Nightster® Special combines the compact proportions of the Nightster® platform with a modern powertrain, advanced rider information systems, and a carefully engineered chassis. Built around the Revolution® Max 975T engine, the model integrates liquid-cooled performance, electronic fuel injection, and a 6-speed drivetrain within a structure designed to support responsive handling and everyday usability. The motorcycle also incorporates a comprehensive suite of rider-focused technology, including a color TFT display, Bluetooth® functionality, LED lighting, and standard rider safety enhancements.
Revolution® Max 975T Engine Performance
The engine serves as one of the defining technical elements of the 2026 Harley-Davidson® Nightster® Special. Harley-Davidson® equips the motorcycle with the Revolution® Max 975T engine, a liquid-cooled 975 cc powerplant featuring a 3.82-inch bore and a 2.6-inch stroke. The engine operates with a 12:1 compression ratio and uses Electronic Sequential Port Fuel Injection to manage fuel delivery. This configuration supports a rated output of 91 horsepower at 7,500 rpm and 72 ft-lb of torque at 5,750 rpm. The combination of displacement, compression, and electronic fuel management establishes a performance-focused platform designed to deliver strong output across the operating range.
Advanced Valve Train Architecture
The Revolution® Max 975T engine uses a chain-driven dual overhead camshaft design with hydraulic self-adjusting lifters and four valves per cylinder. Harley-Davidson® also incorporates intake Variable Valve Timing, allowing the engine to manage intake valve operation across different engine speeds and load conditions. This modern valve train configuration contributes to efficient airflow through the combustion process while reducing maintenance requirements associated with manual valve adjustments.
Intake, Exhaust, and Lubrication Systems
The intake system utilizes a downdraft arrangement with tuned velocity stacks and washable filter media. This design directs incoming air efficiently toward the combustion chambers while maintaining serviceability through a reusable filtration element. Exhaust gases exit through a 2-into-1 exhaust system that incorporates a catalyst within the header assembly. Harley-Davidson® pairs these systems with a semi-dry sump lubrication design that supports the engine’s operating requirements.
Drivetrain and Power Transfer Systems
The 2026 Harley-Davidson® Nightster® Special uses a drivetrain configuration engineered to transmit power efficiently from the Revolution® Max engine to the rear wheel. Harley-Davidson® combines a gear-driven primary system, a 6-speed transmission, and a belt final drive to create a balanced power delivery arrangement. The drivetrain specifications reveal a focus on mechanical simplicity and predictable operation.
6-speed Transmission Configuration
The transmission features six forward gears that provide a broad operating range for acceleration and cruising. Overall gear ratios are listed at 12.21 in first gear, 9.022 in second, 6.994 in third, 5.641 in fourth, 4.731 in fifth, and 4.131 in sixth. This progression creates a structured transition between gears while maintaining usable spacing throughout the transmission. The lower gears provide mechanical advantage during acceleration, while the higher gears reduce engine speed at cruising velocities. The ratio spread reflects the motorcycle’s dual emphasis on performance and everyday rideability.
Primary Drive, Final Drive, and Clutch Design
The drivetrain uses a gear primary drive with a 49/89 ratio and a belt final drive with a 34/80 ratio. Between these systems, Harley-Davidson® installs a mechanical eight-plate wet clutch featuring assist-and-slip functionality. The wet clutch design operates within an oil bath and uses multiple friction plates to manage power transfer. The assist-and-slip configuration supports controlled clutch engagement while helping manage drivetrain behavior during downshifts and deceleration.
Chassis Engineering and Structural Design
The 2026 Harley-Davidson® Nightster® Special utilizes a chassis architecture that combines strength, rigidity, and efficient packaging. Harley-Davidson® builds the motorcycle around a stressed-member high-strength low-alloy steel trellis frame incorporating stamped, cast, and forged junctions. MIG welding joins the primary structural components, while an aluminum forged mid-structure contributes to the overall framework. The chassis dimensions and geometry create a compact profile while supporting stability and handling precision.
Frame Construction and Geometry
The frame design integrates multiple manufacturing methods to achieve the desired structural characteristics. Stamped, cast, and forged components work together within the trellis framework, allowing Harley-Davidson® to optimize strength and packaging efficiency. The motorcycle features a 30-degree steering-head rake, a 28-degree fork angle, and 5.4 inches of trail. Combined with a 60.8-inch wheelbase, these dimensions establish the steering geometry and overall chassis stance.
Swingarm and Wheel Configuration
The swingarm uses mild-steel rectangular tube construction with a stamped cross-member and MIG-welded assembly. This component provides the mounting structure for the rear suspension while managing rear-wheel movement. The 2026 Harley-Davidson® Nightster® Special rides on silver aluminum-cast wheels measuring 19 inches in diameter at the front and 16 inches at the rear. Front-wheel width measures 2.5 inches, while rear-wheel width measures 4.25 inches.
Suspension Systems and Ride Dynamics
The suspension package combines conventional front-fork architecture with dual rear shock absorbers. Harley-Davidson® selected components that provide controlled wheel movement while maintaining straightforward adjustment capability. The front and rear systems work together to support stability, handling, and rider comfort.
SHOWA® Front Suspension Components
The front suspension uses 41 mm SHOWA® Dual Bending Valve conventional forks paired with aluminum fork triple clamps. This setup provides 4.5 inches of front-wheel travel and serves as the motorcycle’s primary steering and suspension assembly. The fork design combines structural support with damping control in a conventional layout. The aluminum triple clamps contribute to front-end rigidity while securing the fork assembly.
Dual Rear Shock Arrangement
Rear suspension duties are handled by dual outboard direct-acting emulsion shock absorbers. Harley-Davidson® specifies a linkage-free design with coil springs and threaded preload-adjustment collars. This arrangement provides 3 inches of rear suspension travel and allows riders to adjust preload settings to suit operating requirements. The direct-acting layout simplifies the suspension structure while maintaining consistent functionality.
Wheels, Tires, and Braking Hardware
The 2026 Harley-Davidson® Nightster® Special combines its wheel and tire package with a braking system designed to provide controlled stopping performance. Harley-Davidson® pairs aluminum-cast wheels with Dunlop® Harley-Davidson® Series bias blackwall tires. The motorcycle also uses a single front rotor and a dedicated rear braking assembly supported by standard anti-lock braking technology.
Tire Specifications and Lean Angles
The front tire is a Dunlop® D401F in a 100/90-19 57H specification, while the rear tire is a Dunlop® D401T in a 150/80B16 77H specification. These tires provide the contact patch through which the motorcycle transfers acceleration, braking, and cornering forces to the road surface. Harley-Davidson® lists lean angles of 32 degrees to both the left and right sides. These figures illustrate the motorcycle’s available cornering clearance under the specified testing method.
Brake Components and ABS Integration
The braking system uses a front axially mounted four-piston caliper paired with a single floating hub-mounted rotor measuring 12.6 inches in diameter. At the rear, a floating single-piston caliper works with a 10.2-inch solid uniform expansion rotor. Rotor thickness measures 0.23 inch at the front and 0.2 inch at the rear. Harley-Davidson® equips the 2026 Harley-Davidson® Nightster® Special with standard Anti-lock Braking System functionality.
Rider Safety and Electronic Assistance Technologies
The 2026 Harley-Davidson® Nightster® Special includes a selection of rider safety technologies designed to support motorcycle operation under changing riding conditions. These systems supplement the motorcycle’s mechanical components through electronic monitoring and intervention functions. Harley-Davidson® integrates several standard features that focus on traction management, braking support, and vehicle status monitoring. The inclusion of these systems reflects the motorcycle’s modern technological approach.
Traction and Drivetrain Control Features
In addition to ABS, the 2026 Harley-Davidson® Nightster® Special includes a Traction Control System and a Drag-torque Slip Control System. These systems operate alongside the motorcycle’s drivetrain and braking components to support stability during acceleration and deceleration. The motorcycle also includes a Tire Pressure Monitoring System that continuously tracks tire-pressure status.
Tire Pressure Monitoring and Vehicle Status Information
The Tire Pressure Monitoring System integrates with the motorcycle’s information display to provide operational data. Riders can also access engine temperature, battery voltage, and ambient air temperature information through the vehicle information functions. These features allow important operating data to remain visible during use.
Display Technology and Electrical Systems
The electrical architecture combines charging capability, LED lighting, rider information systems, and Bluetooth® functionality. Harley-Davidson® equips the 2026 Harley-Davidson® Nightster® Special with a maintenance-free absorbed glass mat battery and a three-phase charging system. These components support the motorcycle’s electronic features while providing dependable electrical operation. The electrical package extends beyond basic functionality through the inclusion of connected display technology and device-charging capability.
TFT Display and Information Interface
A 4-inch color TFT display serves as the motorcycle’s primary information center. The display presents speedometer, gear position, odometer, fuel level, clock, trip information, ambient temperature, low-temperature alerts, side-stand alerts, tip-over alerts, cruise indication, range information, and tachometer data. The screen provides a centralized location for vehicle information and operating status. Bluetooth® capability allows riders to pair compatible devices for supported functions. Through the H-D App, riders can access phone calls, music, and navigation functions.
Lighting, Charging, and Connectivity Equipment
The 2026 Harley-Davidson® Nightster® Special uses an all-LED lighting package that includes a headlamp with low beam, high beam, and signature position lighting. All rear lighting uses LED technology, and LED Bullet Turn Signals are installed at both ends of the motorcycle. Electrical power comes from a sealed 12V AGM battery rated at 12Ah and 225 CCA at 0°F. The three-phase charging system provides 45 amps of output and produces up to 585 watts of power under the specified operating conditions. USB-C charging and instrument update capability further expand the motorcycle’s connectivity and utility features.
Dimensions, Capacities, and Rider Interface
The 2026 Harley-Davidson® Nightster® Special combines compact overall dimensions with specifications that support everyday operation and rider accessibility. Harley-Davidson® lists an overall length of 89.2 inches, an overall width of 33.9 inches, and an overall height of 46.7 inches. These dimensions create a motorcycle footprint that remains manageable while accommodating the Revolution® Max powertrain and associated components.
Seating Position and Ground Clearance
The motorcycle features a laden seat height of 27.1 inches and an unladen seat height of 28.1 inches. These figures contribute to a low-profile rider interface while maintaining adequate ground clearance. Harley-Davidson® lists static ground clearance at 4.7 inches. The relationship between seat height, wheelbase, and ground clearance influences rider confidence and overall ergonomics.
Fuel Capacity and Weight Specifications
Fuel capacity measures 3.1 gallons, while the fuel-injection reserve warning threshold is listed at 0.8 gallons. The motorcycle has an as-shipped weight of 465 pounds and a running-order weight of 483 pounds. Gross Vehicle Weight Rating is specified at 922 pounds, with front and rear axle ratings of 353 pounds and 595 pounds, respectively. These figures establish the motorcycle’s operating capacities and structural load parameters. Combined with the 52 mpg estimated fuel-economy rating, they help define the 2026 Harley-Davidson® Nightster® Special’s overall operating profile.
