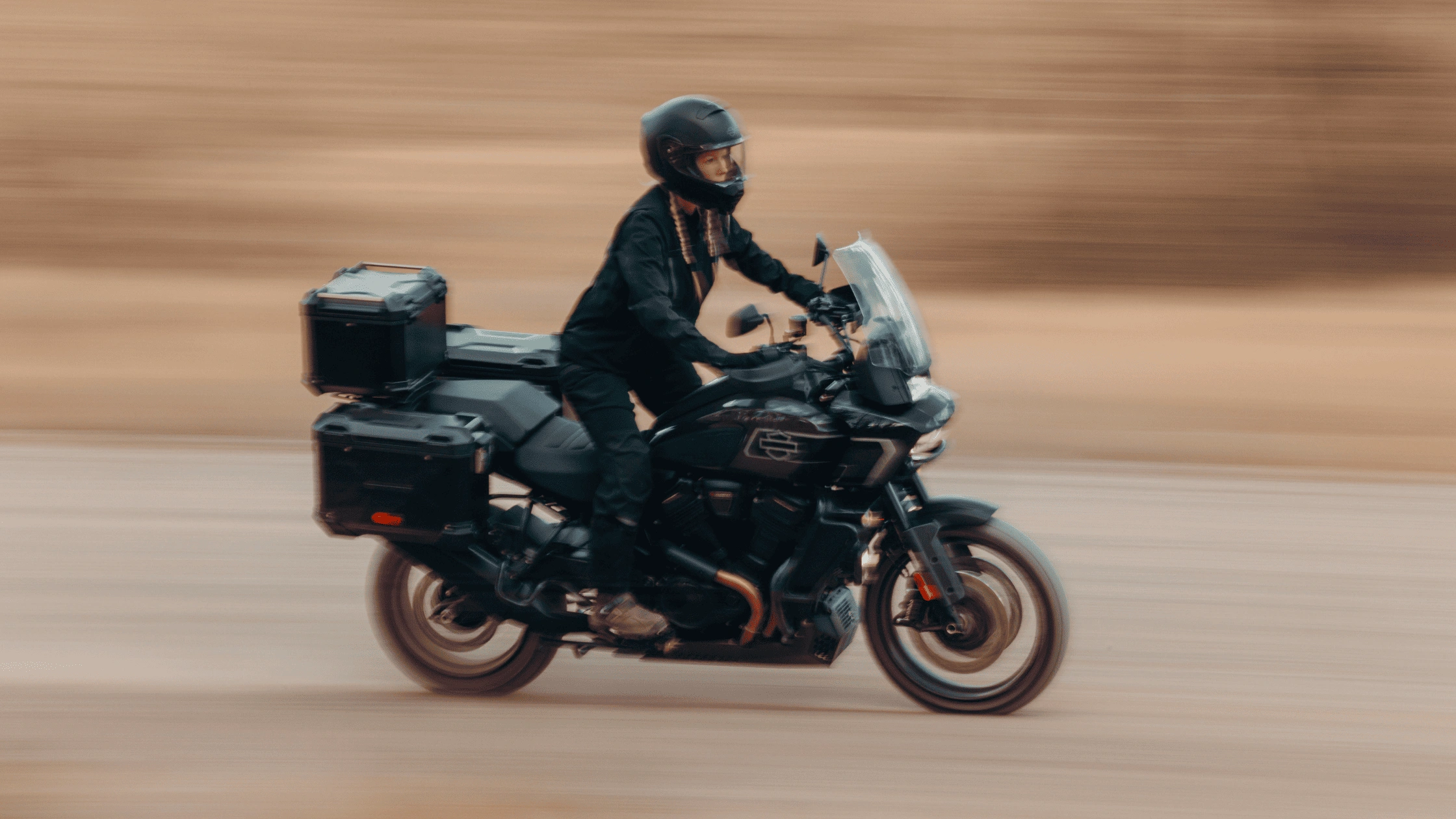

The 2026 Harley-Davidson® Pan America® 1250 Limited is designed as an adventure-touring motorcycle with a focus on long-distance capability, chassis control, electronic rider assistance, and high-output performance. The model combines the Revolution® Max 1250 engine, electronically adjustable semi-active suspension, advanced braking technology, and integrated rider safety systems into a platform intended for paved highways, uneven road surfaces, and extended touring use. Its technical specifications include a 1,252 cc liquid-cooled engine, 150 horsepower, 94 ft-lb of torque, a 6-speed transmission, and a fully integrated TFT touchscreen display with Bluetooth® connectivity.
Revolution® Max 1250 Engine Configuration
The 2026 Harley-Davidson® Pan America® 1250 Limited uses the Revolution® Max 1250 engine. This liquid-cooled V-twin engine has a displacement of 76.4 cubic inches, or 1,252 cc. The bore measures 4.134 inches, and the stroke measures 2.846 inches. The engine operates with a 13.0:1 compression ratio and uses Electronic Sequential Port Fuel Injection for fuel delivery management.
The valvetrain consists of a chain-driven dual overhead camshaft configuration with hydraulic self-adjusting lifters and variable valve timing on both the intake and exhaust sides. Each cylinder contains four valves. This configuration supports consistent airflow management throughout the operating range and contributes to the engine’s high-rpm power characteristics.
Power output is rated at 150 horsepower at 8,750 rpm. Torque output is listed at 94 ft-lb at 6,750 rpm using the J1349 testing method. The engine uses a downdraft intake system with tuned velocity stacks and washable filter media. The exhaust system follows a 2-into-1-into-1 layout with a catalyst integrated into the header assembly. Lubrication is managed through a semi-dry sump system designed to maintain oil control during varying riding conditions and prolonged operation.
The motorcycle has a fuel capacity of 5.6 gallons and an estimated fuel economy rating of 46 mpg. Reserve fuel capacity is listed at 1 gallon. Oil capacity with filter measures 4.75 quarts, while coolant capacity is 2.32 quarts.
Six-Speed Transmission and Drivetrain Engineering
The drivetrain configuration uses a 6-speed transmission paired with a mechanical assist-and-slip clutch. The clutch assembly is an 8-plate wet design rated at 1090N. The assist function reduces clutch lever effort during operation, while the slip function helps reduce rear wheel instability during aggressive downshifts and rapid deceleration.
Primary drive uses a gear configuration with a 49/89 ratio. Final drive uses a chain system with a 19/48 ratio. Overall transmission ratios are listed at 13.11 in first gear, 9.687 in second gear, 7.509 in third gear, 6.057 in fourth gear, 5.08 in fifth gear, and 4.436 in sixth gear. This range provides lower gearing for reduced-speed maneuvering and higher gearing for sustained highway travel.
Chassis Structure and Dimensional Specifications
The chassis uses a stressed-member trellis frame constructed from high-strength low-alloy steel. The frame incorporates stamped, cast, and forged junctions with MIG-welded construction and an aluminum forged mid-structure. The engine serves as a structural component within the chassis assembly to assist with rigidity and mass centralization.
The motorcycle measures 92.3 inches in overall length, 43.1 inches in overall width, and 59.4 inches in overall height. Wheelbase measures 62.2 inches. Steering geometry includes a 25-degree rake and a 25-degree fork angle paired with 4.3 inches of trail.
The 2026 Harley-Davidson® Pan America® 1250 Limited has a static ground clearance measurement of 7.1 inches. Models equipped with Adaptive Ride Height suspension measure 6.1 inches of static ground clearance and 6.9 inches of dynamic ground clearance. Seat height measurements with optional Adaptive Ride Height suspension are listed at 30.4 inches in the low laden position and 31.4 inches in the high laden position. Unladen seat heights with the same suspension system are listed at 32.1 inches and 33.1 inches.
Weight as shipped is listed at 626 pounds. Running order weight measures 661 pounds. The Gross Vehicle Weight Rating is specified at 1,034 pounds, with a front Gross Axle Weight Rating of 399 pounds and a rear Gross Axle Weight Rating of 665 pounds. Luggage capacity volume is rated at 4.24 cubic feet.
Semi-Active Suspension and Ride Height Technology
Front suspension uses a 47 mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps are integrated into the assembly. An optional configuration adds Adaptive Ride Height functionality to the electronically adjustable fork system.
Rear suspension uses a linkage-mounted monoshock equipped with automatic electronic preload control and semi-active compression and rebound damping adjustment. An optional rear suspension setup also includes Adaptive Ride Height functionality.
Front and rear suspension travel are both listed at 7.5 inches. The electronically managed damping system continuously adjusts suspension behavior based on riding inputs and surface conditions. Automatic preload adjustment assists with maintaining chassis balance when rider weight, passenger load, or luggage configuration changes.
Wheel Construction and Tire Specifications
The standard wheel configuration uses satin black cast aluminum wheels. Front wheel diameter measures 19 inches with a width of 3 inches. Rear wheel diameter measures 17 inches with a width of 4.5 inches. Optional anodized aluminum tubeless laced wheels are also available.
The 2026 Harley-Davidson® Pan America® 1250 Limited is equipped with Michelin® Scorcher Adventure radial tires. Front tire specification is 120/70R19 60V. Rear tire specification is 170/60R17 72V. These tire dimensions support the motorcycle’s intended use across highway travel and mixed riding surfaces.
Lean angle measurements are listed at 42 degrees on both the right and left sides using the J1168 testing method.
Braking Components and Stability Systems
Front braking hardware includes dual floating tower-mounted rotors with radially mounted monoblock 4-piston calipers. Front rotor diameter measures 12.6 inches with a thickness of 0.17 inches. Rear braking uses a floating single-piston caliper paired with an 11-inch solid uniform expansion rotor measuring 0.2 inches thick.
Anti-lock Braking System functionality is included as standard equipment. Electronic Linked Braking is also integrated into the braking system. These systems are intended to assist braking stability and braking force distribution during varying riding conditions.
The 2026 Harley-Davidson® Pan America® 1250 Limited includes a full set of rider safety enhancement technologies. Standard systems include a Traction Control System, Drag-Torque Slip Control System, Vehicle Hold Control, Tire Pressure Monitoring System, and Wheel Lift Mitigation.
Cornering Rider Safety Enhancements are also included. These systems consist of Cornering Enhanced Anti-lock Brake System, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control System, Cornering Drag-Torque Slip Control System, and Enhanced Lift Mitigation. These technologies use motorcycle lean-angle data to modify system response during braking, acceleration, and deceleration while cornering.
Lighting Systems and Electrical Equipment
Electrical equipment includes a sealed maintenance-free absorbed glass mat battery rated at 12V, 17.5Ah, and 310 cold cranking amps at 0°F. Charging is handled by a three-phase 45-amp system producing 390 watts at 13 volts and 1,300 rpm, with maximum power output rated at 585 watts at 13 volts and 2,500 rpm.
The starting system uses a 0.9 kW electric starter with direct-drive starter motor engagement.
Lighting equipment includes a Daymaker® Adaptive LED headlamp with a 6-segment LED banking lamp system. The rear lighting assembly uses an all-LED tail and stop lamp with signature lighting functionality. Front and rear turn signals use LED bullet-style lighting components. Auxiliary fog lamps and driving beams are also integrated into the lighting package.
TFT Display and Integrated Connectivity
The 2026 Harley-Davidson® Pan America® 1250 Limited uses a 6.8-inch color TFT touchscreen display with Bluetooth® capability. The display provides rider access to speedometer information, gear position, odometer readings, fuel level status, tachometer indication, trip information, ambient air temperature, low-temperature alerts, side-stand notifications, tip-over alerts, cruise information, and estimated range calculations.
Bluetooth® connectivity supports phone pairing for mobile phone access, music playback, and navigation through the Harley-Davidson® mobile application. Hands-free mobile phone functionality is included as standard equipment. Headset connectivity supports rider and passenger intercom functionality through compatible Bluetooth® systems.
Vehicle information displayed through the TFT interface includes Tire Pressure Monitoring System data, engine temperature, battery voltage, and ambient air temperature information. USB-C charging and instrument update capability are included with 5V and 3A output specifications.
Touring Capability and Functional Design
The 2026 Harley-Davidson® Pan America® 1250 Limited combines long-distance touring dimensions with electronically managed chassis systems and integrated rider assistance technology. The 62.2-inch wheelbase and 25-degree steering geometry contribute to highway stability and directional control. The combination of semi-active suspension, electronically linked braking systems, and lean-sensitive rider safety technologies provides operational support during changing surface conditions and load configurations.
The motorcycle’s luggage capacity, 5.6-gallon fuel tank, and upright chassis proportions support extended travel capability. The Michelin® Scorcher Adventure tires, cast aluminum wheel setup, and electronically adjustable suspension components contribute to the motorcycle’s mixed-surface functionality. The integrated TFT touchscreen, Bluetooth® connectivity, LED lighting systems, and adaptive rider assistance technologies place a strong emphasis on technical integration and operational control.
