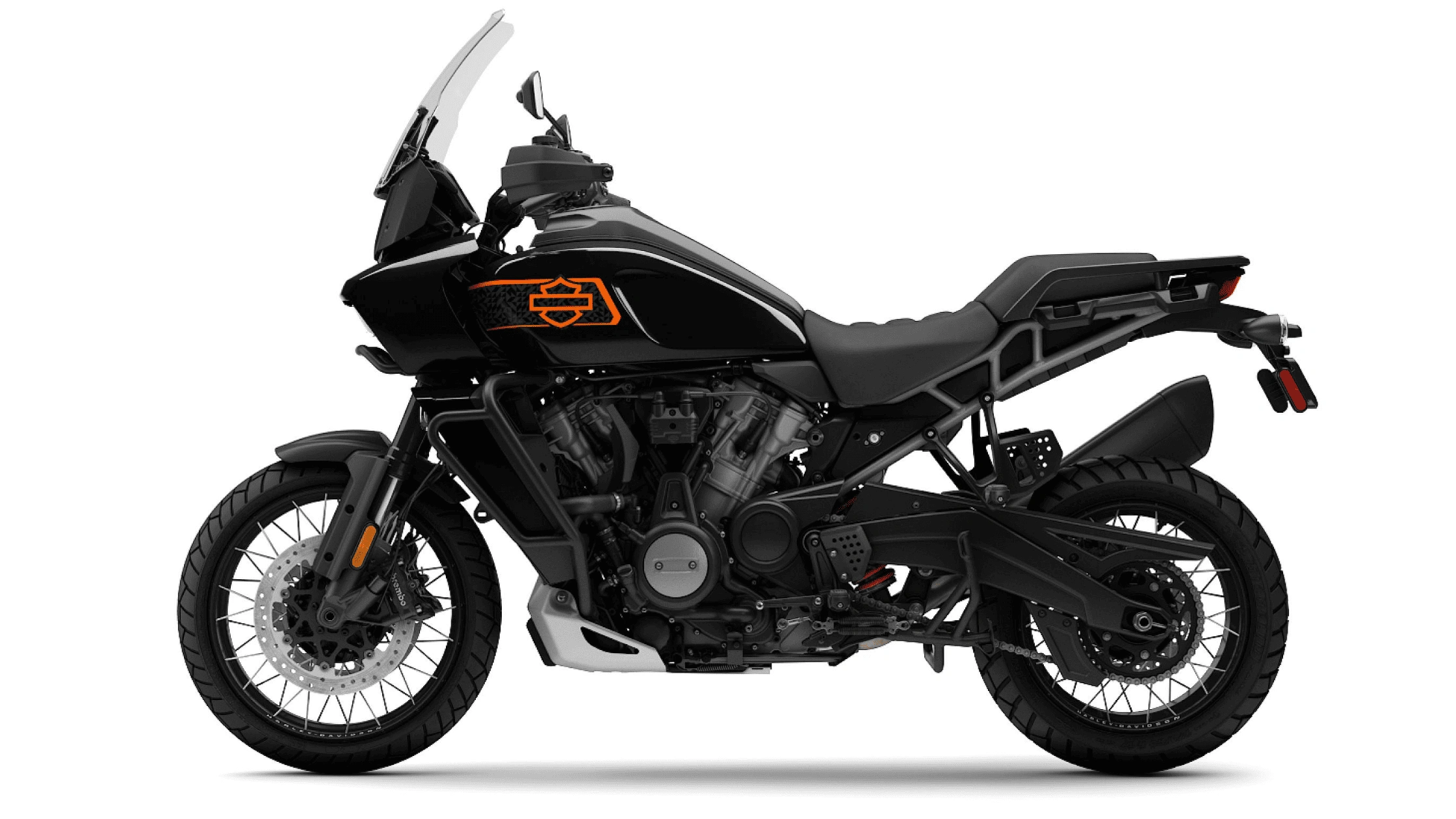

The 2026 Harley-Davidson® Pan America® 1250 Special is designed as a high-performance adventure touring motorcycle with a focus on measurable specifications and integrated systems. This model uses a liquid-cooled Revolution® Max 1250 engine, electronically controlled suspension, and a comprehensive electronics suite to support consistent performance across paved and unpaved environments. The platform combines structural rigidity, adjustable ergonomics, and a range of rider assistance technologies that directly influence handling, braking, and traction.
High-Output Revolution® Max 1250 Engine Configuration
The 2026 Harley-Davidson® Pan America® 1250 Special is equipped with the Revolution® Max 1250 engine, a 1,252cc V-twin designed with chain-driven dual overhead camshafts and four valves per cylinder. The engine uses hydraulic self-adjusting lifters and incorporates variable valve timing on both the intake and exhaust sides. This configuration supports controlled airflow and combustion efficiency across a wide rpm range. The bore measures 4.134 inches, and the stroke measures 2.846 inches, producing a compression ratio of 13.0:1. These dimensions reflect a design focused on achieving high output while maintaining consistent engine operation.
The engine produces 150 horsepower at 8,750 rpm and 94 ft-lb of torque at 6,750 rpm. These figures are supported by an Electronic Sequential Port Fuel Injection system that manages fuel delivery with precision. The intake system uses a downdraft configuration with tuned velocity stacks and a washable filter element. Exhaust gases exit through a 2-into-1-into-1 system with a catalyst integrated into the header. The lubrication system uses a semi-dry sump design to maintain oil distribution under varied riding conditions. Recommended fuel is 91 octane or higher, which aligns with the engine’s compression ratio and output requirements.
Transmission and Drivetrain Mechanics
This model uses a 6-speed transmission paired with a gear-driven primary drive and a chain final drive. The primary drive ratio is 49/89, and the final drive ratio is 19/48. The drivetrain includes a mechanical 8-plate wet clutch with assist and slip functionality. This design reduces lever effort and supports smoother engagement during shifting and deceleration.
The overall gear ratios are structured to provide controlled acceleration and stable cruising. First gear has a ratio of 13.11, followed by 9.687 in second, 7.509 in third, 6.057 in fourth, 5.08 in fifth, and 4.436 in sixth. This progression allows the engine to operate efficiently across varying speeds and riding conditions. The drivetrain configuration is selected to maintain consistent power delivery while accommodating both low-speed maneuvering and sustained highway operation.
Structural Frame and Suspension Integration
The chassis is built around a stressed-member high-strength low-alloy steel trellis frame. This frame uses stamped, cast, and forged junctions that are MIG-welded, along with an aluminum forged mid-structure. The design reduces overall weight while maintaining rigidity. The swingarm is constructed as a one-piece cast aluminum unit, contributing to structural consistency and reduced flex.
Front suspension consists of a 47 mm inverted fork with electronically adjustable semi-active damping control. Rear suspension uses a linkage-mounted monoshock with automatic electronic preload control and semi-active compression and rebound damping. Both front and rear systems are available with optional Adaptive Ride Height functionality. This system adjusts ride height under certain conditions and affects both seat height and ground clearance.
Suspension travel measures 7.5 inches at both the front and rear. The steering geometry includes a 25-degree rake and 4.3 inches of trail. The wheelbase is 62.4 inches. These measurements define the motorcycle’s handling characteristics and contribute to stability and directional control. Static ground clearance is listed at 6.9 inches without Adaptive Ride Height and 8.1 inches with it. Dynamic ground clearance with optional suspension remains 6.9 inches.
Dimensional Specifications and Ergonomic Adjustability
The overall length of the motorcycle is 89.4 inches, with a width of 38.4 inches and a height of 59.4 inches. Seat height is adjustable and varies based on configuration. Laden seat height is 31.1 inches in the low position and 32 inches in the high position. With optional Adaptive Ride Height, laden seat height is reduced to 30.4 inches in the low position and 31.4 inches in the high position. Unladen seat height ranges from 33.4 to 34.4 inches, or from 32.7 to 33.7 inches when equipped with Adaptive Ride Height.
The motorcycle has a fuel capacity of 5.6 gallons, with a reserve fuel warning at approximately 1 gallon. Oil capacity with filter is 4.75 quarts, and coolant capacity is 2.32 quarts. The weight is 542 pounds as shipped and 578 pounds in running order. The gross vehicle weight rating is 1,003 pounds. These figures define load capacity and operating range for extended travel.
Wheel and Tire Specifications with Braking System Design
The 2026 Harley-Davidson® Pan America® 1250 Special uses Michelin® Scorcher “Adventure” radial tires. The front tire is sized 120/70R19, and the rear tire is 170/60R17. Standard wheels are cast aluminum with a satin black finish. Optional wheels include anodized aluminum tubeless laced designs.
The braking system uses dual front rotors measuring 12.6 inches in diameter, paired with radially mounted monoblock 4-piston calipers. The rear brake uses a single floating caliper and an 11-inch rotor. Anti-lock Braking System is standard. The brake configuration is designed to provide consistent stopping performance under varied conditions while maintaining control during deceleration.
Integrated Display and Connectivity Systems
The motorcycle includes a 6.8-inch color TFT touchscreen display. This display provides a range of operational data, including speedometer, gear position, odometer, fuel level, trip information, ambient temperature, and tachometer. Additional alerts include low temperature, side stand status, and tip-over indication. Cruise control status and fuel range are also displayed.
Bluetooth® connectivity is standard and allows pairing with a mobile device for calls, music, and navigation through the Harley-Davidson® mobile application. The system supports phone and media connectivity through Bluetooth®. A USB-C power outlet provides 5V output for device charging, and the system supports instrument updates through USB-C as well. The vehicle information display includes tire pressure monitoring, engine temperature, battery voltage, and ambient air temperature.
Lighting and Electrical System Configuration
The electrical system uses a sealed maintenance-free absorbed glass mat battery rated at 12V and 17.5Ah with 310 cold cranking amps. Charging is managed by a three-phase 45-amp system, producing 390 watts at 13 volts and 1,300 rpm, with a maximum output of 585 watts at 2,500 rpm. The starting system uses a 0.9 kW electric starter with direct drive engagement.
Lighting is fully LED-based. The headlamp is a Daymaker® Adaptive LED unit with a 6-segment banking lamp system. The tail and stop lamp use LED technology with a signature lighting design. Front and rear turn signals are LED bullet-style units. These components are designed to provide consistent illumination and durability.
Advanced Rider Safety Systems and Cornering Control
The 2026 Harley-Davidson® Pan America® 1250 Special includes a full set of rider safety systems. Standard features include Anti-lock Braking System, Electronic Linked Braking, Traction Control System, Drag-torque Slip Control System, Vehicle Hold Control, Tire Pressure Monitoring System, and Wheel Lift Mitigation. These systems operate together to manage braking force, traction, and stability.
The motorcycle also includes cornering-enhanced systems. These include Cornering Enhanced Anti-lock Braking, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control, and Cornering Drag-Torque Slip Control. Enhanced Lift Mitigation is also included. These systems adjust their operation based on lean angle and riding conditions. The motorcycle is rated with a lean angle of 42 degrees on both the right and left sides.
