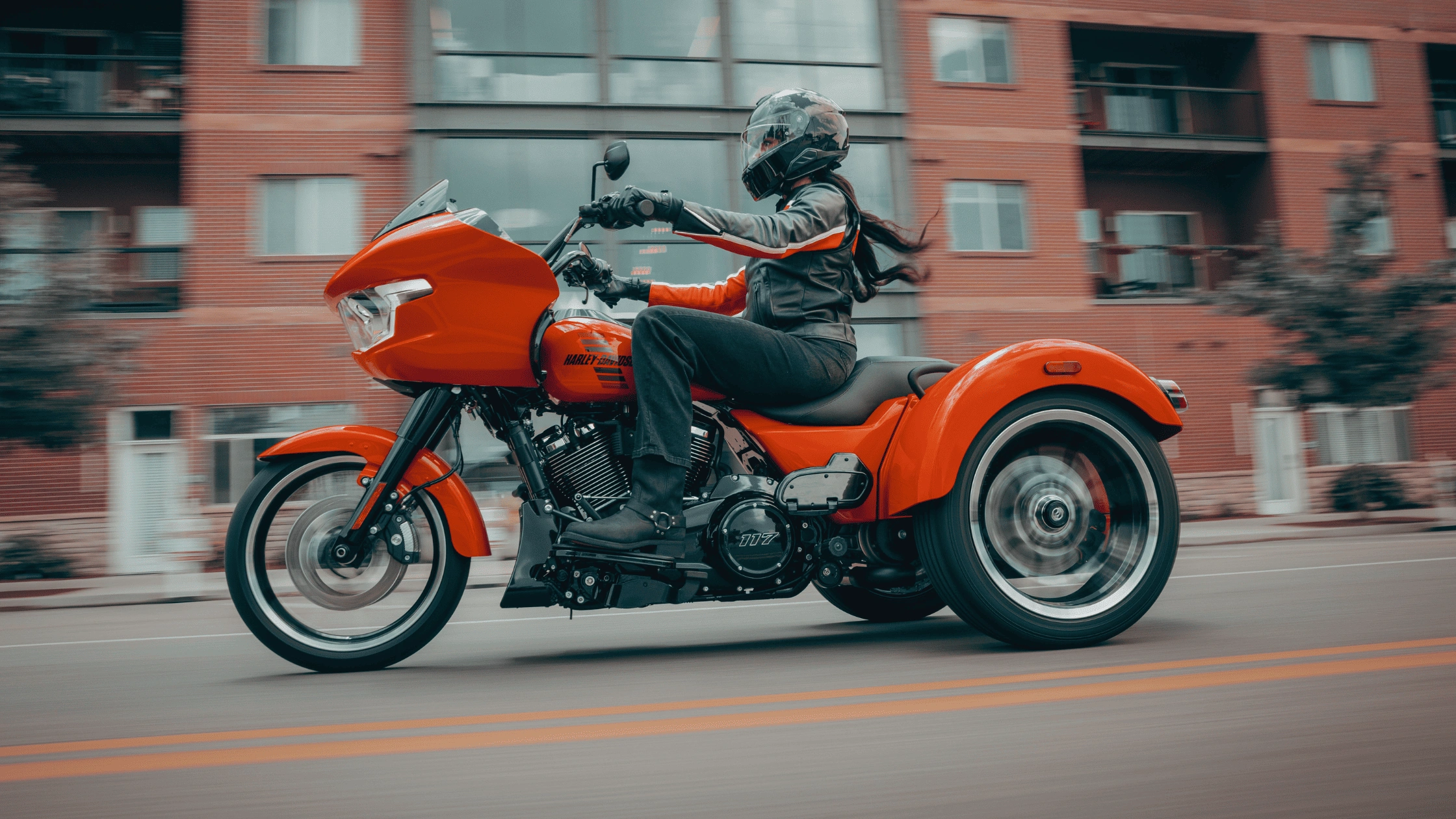

The 2026 Harley-Davidson® Road Glide® 3 is a three-wheel touring motorcycle designed with a focus on structural stability, controlled power delivery, and integrated rider assistance systems. This model uses a fixed trike configuration that supports increased load capacity and improved balance during low-speed operation. Its engineering combines a large-displacement V-twin engine, a reinforced chassis, and an extensive set of electronic systems. The specifications indicate a machine intended for long-distance use with consistent mechanical output, predictable handling geometry, and integrated rider interface systems.
Engine Configuration and Output Characteristics
The 2026 Harley-Davidson® Road Glide® 3 is equipped with a Milwaukee-Eight® VVT 117 engine with a displacement of 1,923 cubic centimeters. The engine uses a pushrod-operated overhead valve configuration with four valves per cylinder and hydraulic self-adjusting lifters. This design reduces the need for frequent valve maintenance while maintaining consistent valve timing and performance.
The bore measures 4.075 inches, and the stroke measures 4.5 inches. These dimensions support a compression ratio of 10.3 to 1, which allows for efficient combustion and stable power output. The engine produces 105 horsepower at 4,600 revolutions per minute and delivers 129 foot-pounds of torque at 3,250 revolutions per minute. This torque output at a relatively low engine speed supports acceleration under load and steady cruising performance.
Fuel delivery is managed by an Electronic Sequential Port Fuel Injection system. This system ensures consistent fuel atomization and delivery under varying operating conditions. The air intake system uses a washable paper air cleaner, which provides filtration while allowing for reuse. Exhaust gases are routed through a 2-1-2 dual exhaust system, which supports balanced exhaust flow and contributes to engine efficiency.
The lubrication system is a pressurized dry-sump configuration. This system maintains oil circulation independent of engine position and reduces the risk of oil starvation during extended operation.
Transmission System and Power Transfer
The drivetrain of the 2026 Harley-Davidson® Road Glide® 3 is configured to deliver power efficiently from the engine to the rear wheels. The primary drive uses a chain system with a 34 to 46 ratio. The final drive uses a belt system with a 30 to 70 ratio. This combination provides durability and reduced maintenance requirements compared to fully chain-driven systems.
The transmission is a 6-speed Cruise Drive® unit with integrated reverse functionality. The reverse system is electrically actuated and controlled from the handlebar, allowing for controlled backward movement during parking or maneuvering. This feature is particularly relevant for a vehicle with a running weight exceeding 1,100 pounds.
Gear ratios are calibrated to provide progressive acceleration and stable highway cruising. The first gear ratio is 10.534, followed by 7.302 in second gear, 5.423 in third gear, 4.392 in fourth gear, 3.742 in fifth gear, and 3.000 in sixth gear. These ratios allow the engine to operate within an efficient range across different speeds.
The clutch is a mechanically actuated 10-plate wet Assist and Slip design. This configuration reduces clutch lever effort and minimizes rear-wheel instability during aggressive downshifting.
Structural Design and Chassis Engineering
The chassis is constructed from mild steel using a square-section backbone with twin downtubes. This design provides structural rigidity and supports the additional mass associated with a three-wheel configuration. The swingarm is made from permanent mold cast aluminum, which reduces weight while maintaining strength.
The front suspension uses a 49 millimeter dual-bending valve fork. This system is designed to manage front-end load and maintain consistent damping characteristics. The rear suspension consists of hand-adjustable emulsion shocks. These shocks allow the rider to adjust preload based on load conditions.
Suspension travel measures 4.6 inches at the front and 3.5 inches at the rear. These values provide a balance between ride comfort and handling precision. The steering geometry includes a rake angle of 26 degrees and a fork angle of 32 degrees. The trail is measured at 3.8 inches. These parameters contribute to directional stability and predictable steering response.
The braking system includes dual floating rotors at the front, each measuring 11.8 inches in diameter, paired with 4-piston fixed calipers. The rear brake uses a fixed rotor with a floating caliper and an integrated parking brake. This configuration provides consistent braking force and controlled deceleration.
Dimensional Specifications and Load Capacity
The overall length of the 2026 Harley-Davidson® Road Glide® 3 is 103 inches. The width measures 57.5 inches, and the height measures 51.4 inches. The wheelbase is 67.7 inches, which supports stability during straight-line travel.
Seat height is 26.5 inches when the vehicle is laden and 27.9 inches when unladen. Ground clearance is 5.5 inches. These dimensions provide accessibility for a wide range of riders while maintaining adequate clearance for standard road conditions.
The fuel tank has a capacity of 6 gallons, with a 1-gallon reserve indicated by a warning system. Oil capacity is 5 quarts with a filter installed. The transmission and primary chain case each hold 1.1 quarts of fluid. Coolant capacity is 0.82 quarts.
The running weight is 1,184 pounds, with a gross vehicle weight rating of 1,700 pounds. The front axle weight rating is 511 pounds, and the rear axle weight rating is 1,189 pounds. Luggage capacity is measured at 2 cubic feet, allowing for storage of essential touring equipment.
Wheel, Tire, and Suspension Integration
The 2026 Harley-Davidson® Road Glide® 3 uses Dunlop® Harley-Davidson® series tires. The front tire is a D408F model with a specification of MT 130/60B19 M/C 61H. The rear tires are specified as P215/45R18 83T.
The wheels are cast aluminum with a gloss black and machined 5-spoke design. The front wheel has a diameter of 19 inches and a width of 3.5 inches. The rear wheels have a diameter of 18 inches and a width of 7 inches. These dimensions support stable contact with the road surface and contribute to handling consistency.
The suspension system works in conjunction with the tire and wheel setup to maintain traction and ride comfort. The adjustable rear shocks allow for compensation based on passenger or cargo weight.
Electrical System and Power Management
The electrical system includes a sealed 12-volt battery with a capacity of 28 amp-hours and a rating of 405 cold cranking amps. This battery supports reliable engine starting and system operation.
Charging is managed by a three-phase 48-amp system. This system provides 600 watts at 13 volts at 2,000 revolutions per minute, with a maximum output of 625 watts. This capacity supports the operation of lighting, infotainment, and accessory systems.
The starting system uses a 1.6 kilowatt electric starter with solenoid engagement. This system ensures consistent ignition under varying conditions.
Lighting is fully LED, including the headlamp, taillamp, and turn signals. LED lighting improves visibility and reduces power consumption.
A USB-C power outlet rated at 15 watts is located in the media storage compartment. This outlet allows for device charging and accessory integration.
Integrated Infotainment and Connectivity Systems
The 2026 Harley-Davidson® Road Glide® 3 uses the Skyline™ operating system for infotainment. The display is a 12.3-inch full-color TFT screen that integrates vehicle information, navigation, and media controls. The system includes digital gauges that display parameters such as air temperature and oil pressure.
Audio output is rated at 50 watts per channel and is delivered through two 5.25-inch speakers. This configuration provides consistent audio clarity.
Connectivity features include Bluetooth® support for phone and media functions. Apple CarPlay® compatibility is available through both wired and wireless connections. USB connectivity supports external media devices, including flash drives and MP3 playback.
The navigation system is embedded and provides route guidance with traffic and weather data through a Wi-Fi hotspot connection. This system supports route planning and navigation during extended travel.
Hands-free communication is supported through Bluetooth® integration. The system also supports text-to-speech functionality for compatible inputs.
Rider Assistance and Safety Systems
The 2026 Harley-Davidson® Road Glide® 3 includes a range of rider assistance systems designed to enhance control and stability. Anti-lock Braking System is standard and prevents wheel lock during braking. Electronic Linked Braking distributes braking force between front and rear systems.
The Traction Control System monitors wheel speed and adjusts engine output to maintain traction. The Drag-Torque Slip Control System reduces rear wheel slip during downshifting.
Cornering enhancements include Cornering Anti-lock Braking System, Cornering Electronic Linked Braking, Cornering Traction Control, and Cornering Drag-Torque Slip Control. These systems adjust braking and traction based on vehicle lean and dynamic conditions.
A Tire Pressure Monitoring System provides real-time tire pressure data to the rider. This system helps maintain proper tire inflation and supports overall safety.
