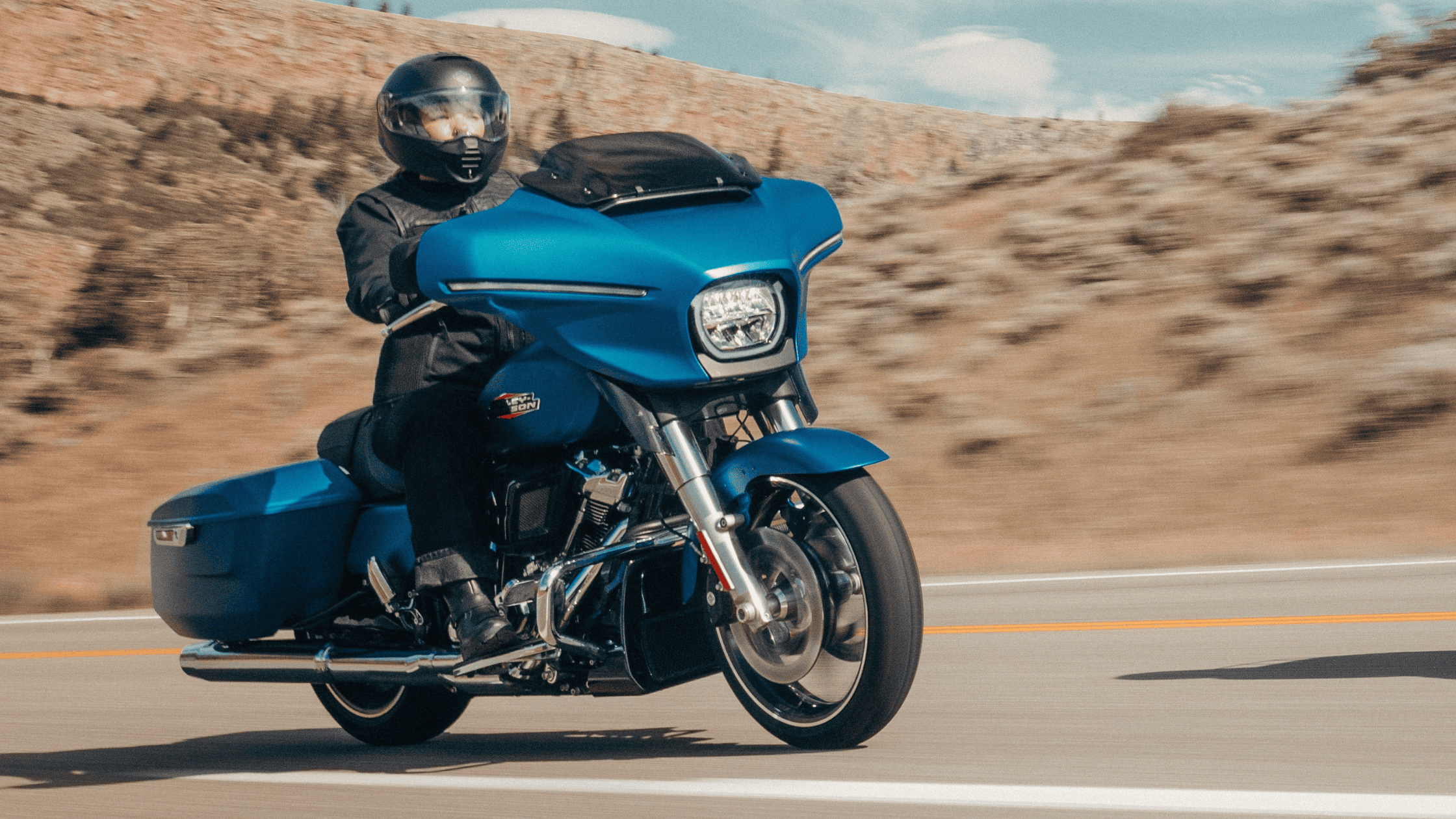

The 2026 Harley-Davidson® Street Glide® is a touring motorcycle that combines large-displacement V-twin performance, long-distance capability, integrated rider technology, and a comprehensive suite of control systems. Built on the FLHX platform, it uses the Milwaukee-Eight® 117 engine, a 6-speed drivetrain, cast aluminum wheels, and a chassis designed to support highway travel and everyday riding. The model also incorporates advanced infotainment features, embedded navigation capability, LED lighting, and multiple rider safety enhancements.
Milwaukee-Eight® 117 Engine Performance
The 2026 Harley-Davidson® Street Glide® centers its performance package around the Milwaukee-Eight® 117 engine. This V-twin powerplant displaces 117 cubic inches, or 1,923 cc, and uses a 10.3:1 compression ratio. Harley-Davidson® rates the engine at 130 ft-lb of torque at 3,250 rpm and 105 horsepower, or 78 kW, at 4,600 rpm. These output figures support the motorcycle's touring mission by providing strong acceleration and consistent power delivery across a broad operating range. The engine also uses a pressurized dry-sump lubrication system designed to manage lubrication demands during a variety of riding conditions.
Four-Valve Cylinder Head Configuration
The Milwaukee-Eight® 117 uses pushrod-operated overhead valves combined with hydraulic self-adjusting lifters. Each cylinder contains four valves, creating a modern valve arrangement while maintaining the traditional architecture associated with Harley-Davidson® touring motorcycles. The engine features a 4.075-inch bore and a 4.5-inch stroke. These dimensions contribute directly to the engine's displacement and torque characteristics. The hydraulic lifter design also supports consistent valve operation without requiring manual valve adjustment.
Fuel Delivery and Exhaust Design
Electronic Sequential Port Fuel Injection manages fuel delivery for the 2026 Harley-Davidson® Street Glide®. This system meters fuel electronically to support efficient engine operation and consistent throttle response. Air enters the engine through a washable fiberglass air cleaner that is designed for repeated service use. Exhaust gases exit through a 2-1-2 dual exhaust system equipped with tapered mufflers.
Drivetrain and Power Transfer Systems
The 2026 Harley-Davidson® Street Glide® uses a drivetrain designed to transfer engine output efficiently while supporting touring-oriented riding characteristics. The motorcycle combines a chain primary drive, a belt final drive, a wet multi-plate clutch, and a 6-speed transmission. These systems work together to deliver power from the crankshaft to the rear wheel.
6-speed Cruise Drive® Transmission
The transmission is a 6-Speed Cruise Drive® unit that provides six forward gears. Harley-Davidson® specifies overall gear ratios of 9.593 in first gear, 6.65 in second gear, 4.938 in third gear, 4.000 in fourth gear, 3.407 in fifth gear, and 2.875 in sixth gear. This progression allows engine output to be distributed through a broad operating range. Lower gears support initial acceleration, while higher gears reduce engine speed during highway travel.
Chain Primary and Belt Final Drive
Power transfer begins with a chain primary drive using a 34/46 ratio. The drivetrain then uses a belt final drive with a 32/68 ratio to deliver power to the rear wheel. The clutch is a mechanically actuated 10-plate wet design equipped with Assist and Slip functionality. This arrangement integrates directly with the transmission and final drive system.
Chassis Design and Touring Dimensions
The 2026 Harley-Davidson® Street Glide® combines a steel frame, long wheelbase, and carefully defined steering geometry to establish its riding characteristics. Chassis design influences stability, steering response, rider positioning, and overall road behavior. The motorcycle also incorporates touring-oriented dimensions that support comfort and carrying capability. From frame construction to wheel specifications, each component contributes to the overall structure of the motorcycle.
Frame and Swingarm Construction
The frame uses mild steel tubular construction with a two-piece stamped and welded backbone. Harley-Davidson® incorporates cast and forged junctions, twin down-tubes, forged fender supports, and a bolt-on rear frame section. The structure is assembled using MIG welding. The swingarm also uses mild steel construction and consists of a two-piece drawn and welded section with forged junctions.
Dimensions and Steering Geometry
The 2026 Harley-Davidson® Street Glide® measures 94.9 inches in overall length, 38.4 inches in width, and 53.1 inches in height. Laden seat height is specified at 26.4 inches, while unladen seat height measures 28.1 inches. Static ground clearance is listed at 5.5 inches. The motorcycle uses a 26-degree steering-head rake, a 29.25-degree fork angle, and 6.7 inches of trail. A 64-inch wheelbase further defines the motorcycle's touring-oriented proportions and handling characteristics.
Suspension Components and Wheel Equipment
Suspension and wheel design play a significant role in ride quality, control, and stability. The 2026 Harley-Davidson® Street Glide® incorporates dedicated front and rear suspension systems along with cast aluminum wheels and touring-specific tire specifications. These components support the motorcycle's dimensions, weight, and intended riding applications. Suspension travel measurements and wheel sizes contribute to overall vehicle dynamics.
Dual Bending Valve Front Suspension
The front suspension uses a 49 mm Dual Bending Valve fork. Front suspension travel measures 4.6 inches, or 117 mm. This fork design serves as the primary front suspension component and supports steering control as well as wheel movement. Its travel specification contributes to the motorcycle's overall ride characteristics. The front suspension integrates directly with the chassis geometry and wheel package.
Adjustable Rear Suspension and Wheel Package
Rear suspension consists of Dual Outboard Emulsion shocks with preload adjustability. Rear wheel travel measures 3 inches, or 76 mm. The motorcycle uses cast aluminum wheels at both ends, with a 19-inch front wheel measuring 3.5 inches wide and an 18-inch rear wheel measuring 5 inches wide. Tire specifications include a Dunlop® Harley-Davidson® Series D408F front tire sized 130/60B19 M/C 61H and a D407T rear tire sized 180/55B18 M/C 80H. These components create the motorcycle's complete wheel and suspension package.
Braking Systems and Rider Control Technologies
The braking package combines conventional braking hardware with integrated electronic control technologies. Harley-Davidson® equips the 2026 Harley-Davidson® Street Glide® with dual front braking components, a rear brake assembly, and a series of rider assistance systems designed to support control during operation. These technologies work alongside the motorcycle's chassis and suspension systems.
Multi-Component Brake Hardware
The front braking system uses dual floating rotors measuring 12.6 inches in diameter and 0.18 inches in thickness. Braking force is managed by dual axially mounted four-piston fixed front calipers with 32 mm pistons. The rear brake uses a fixed rotor measuring 11.8 inches in diameter and 0.28 inches in thickness, along with a single axially mounted rear caliper. Harley-Davidson® specifies dual front brakes as standard equipment.
Integrated Safety Enhancement Systems
The 2026 Harley-Davidson® Street Glide® includes Anti-lock Brake System, Electronic Linked Braking, Traction Control System, Drag-Torque Slip Control System, Vehicle Hold Control, and Tire Pressure Monitoring System. The motorcycle also includes Cornering Enhanced Anti-lock Brake System, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control System, and Cornering Drag-Torque Slip Control System. These technologies expand rider support by integrating electronic management with braking and traction functions. Each system serves a specific operational purpose within the motorcycle's control package.
Electrical Systems and Connected Technology
The electrical system supports starting, charging, lighting, navigation, connectivity, and display functions. Harley-Davidson® integrates these systems into the 2026 Harley-Davidson® Street Glide® to support both operational and convenience-related functions. The motorcycle combines traditional electrical hardware with modern display and communication technology.
Charging Capacity and LED Lighting
Electrical power originates from a sealed, maintenance-free 12-volt battery rated at 28 amp-hours and 405 cold-cranking amps. Charging is handled by a three-phase 58-amp system capable of producing up to 754 watts at 13 volts. Starting duties are performed by a 1.6 kW electric starter with solenoid shift starter motor engagement. LED technology is used for the headlamp, tail and stop lamp, front signal lamps, and rear turn signals.
Navigation, Gauges, and Accessory Power
The 2026 Harley-Davidson® Street Glide® includes digital gauges integrated within the display system. Embedded navigation is included, with traffic and weather functionality available through a Wi-Fi hotspot subscription in applicable markets. A 15-watt USB-C power outlet is located within the media storage box for accessory charging. Vehicle information functions include air temperature, oil pressure, and EITMS information displayed through the onboard system.
Skyline™ OS Infotainment and Touring Utility
The 2026 Harley-Davidson® Street Glide® incorporates a modern infotainment system designed to centralize rider information, media functions, and connectivity features. Display technology, audio capability, and smartphone integration are all housed within a single operating environment. The system serves as both an information center and a media platform. Multiple input and connectivity options are included as standard equipment.
Full-Color TFT Display and Audio Features
The infotainment system operates through Skyline™ OS and uses a 12.3-inch full-color TFT display. Audio output is delivered through two 5.25-inch fairing-mounted speakers. The system provides 50 watts per channel and includes standard AM and FM radio capability. Vehicle information is integrated into the display alongside infotainment functions.
Smartphone Integration and Storage Capacity
The 2026 Harley-Davidson® Street Glide® supports SD cards, flash drives, and MP3 playback through USB connectivity. Bluetooth® capability supports hands-free mobile phone use along with phone, media player, and headset connectivity. Apple CarPlay® compatibility is available through either a wireless or a wired connection. Rider and passenger intercom functionality is supported through compatible headsets sold separately. The motorcycle also provides 2.42 cubic feet of luggage volume, adding practical carrying capacity for touring use.
Schedule a Test Ride Today
A closer look at the 2026 Harley-Davidson® Street Glide® reveals how its Milwaukee-Eight® 117 engine, 6-speed drivetrain, advanced safety systems, and integrated technology package work together as a complete touring platform. At Pig Trail Harley-Davidson® near Bentonville, AR, we invite riders to experience these features firsthand through a test ride. Exploring the motorcycle in person provides an opportunity to evaluate the engine's performance characteristics, the functionality of Skyline™ OS, the operation of the rider assistance systems, and the comfort of the touring-focused chassis. It also allows riders to become familiar with the suspension behavior, display layout, connectivity features, and storage capacity. Schedule a test ride with our team and discover how the 2026 Harley-Davidson® Street Glide® brings its engineering, technology, and touring equipment together in a single motorcycle.
