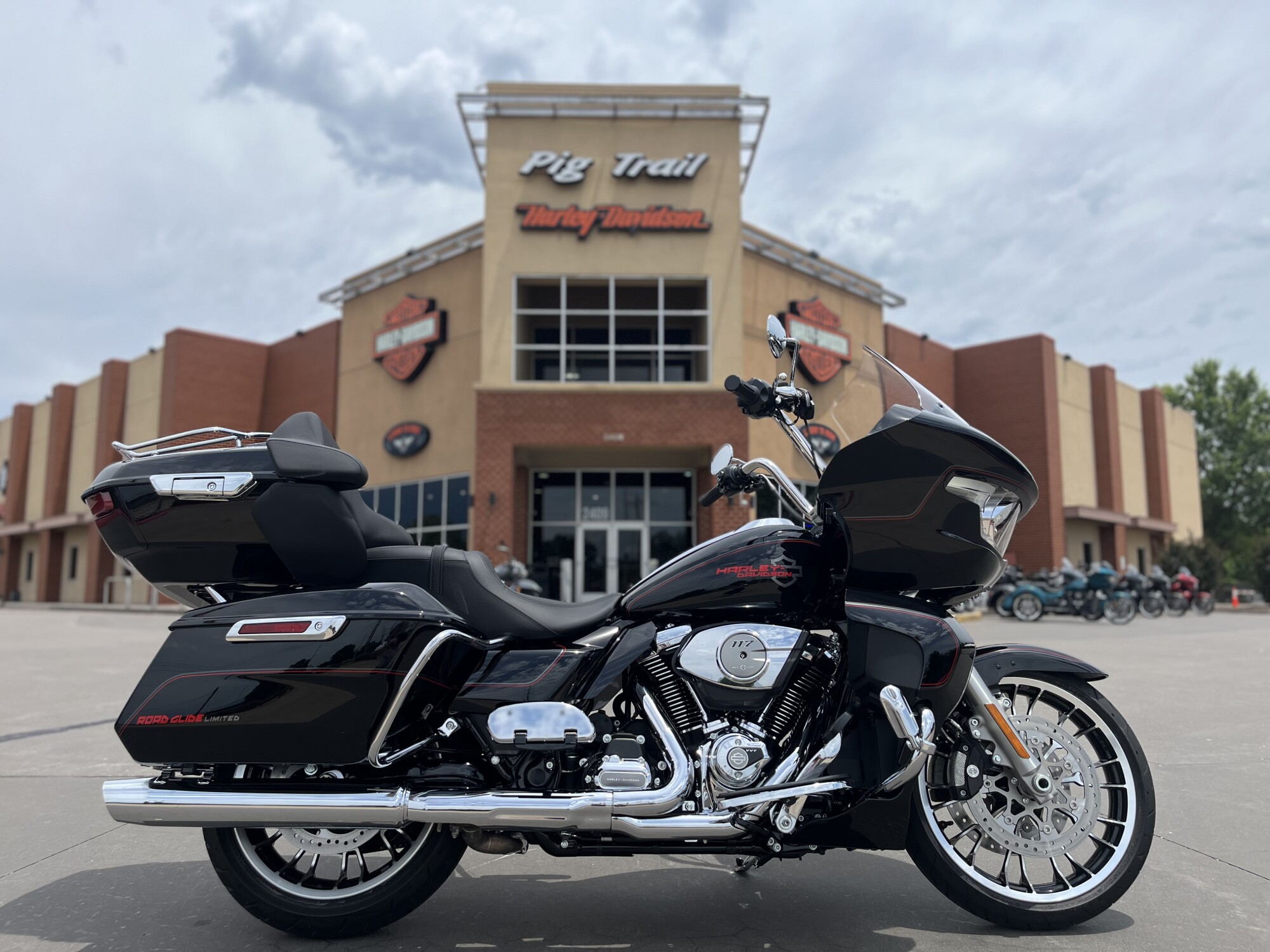

2026 Harley-Davidson® FLTRXL Road Glide Limited Vivid Black
CUSTOM MONTE ROACH PINSTRIPING

This 2026 Harley-Davidson Road Glide Limited sets the ultimate standard for premium, two-up luxury touring, commanding the interstate in timeless, high-gloss Vivid Black. The beautifully redesigned, frame-mounted Sharknose fairing anchors the bike's iconic profile, slicing effortlessly through head buffeting while protecting the rider and passenger from long-haul fatigue. Available in either gleaming chrome or a dark custom blacked-out trim package, this elite machine introduces a massive 13-pound weight drop for the 2026 model year, vastly improving agility and low-speed handling. Long-distance comfort is elevated to an art form with an all-new, aerodynamically sculpted Grand Tour-Pak® featuring integrated passenger speaker pods, flush-mount LED lighting, and an integrated top rack, working alongside a redesigned luxury seat featuring independent, on-seat heating controls for both rider and passenger.

At its mechanical heart sits the high-performance Milwaukee-Eight® VVT 117 V-Twin engine, an absolute powerhouse that belts out a fierce 131 ft-lbs of hard-hitting torque and 106 horsepower. Equipped with Variable Valve Timing, this sophisticated engine optimizes power across the entire RPM range for relentless passing power while using fairing air deflectors, mid-frame deflectors, and lower fairing panels to keep engine heat far away from the cockpit. Power flows seamlessly through a 6-speed Cruise Drive® transmission, while the high-tech command center is centered around the spectacular Skyline™ OS Infotainment System, sporting a massive 12.3-inch color TFT touchscreen with embedded navigation, wireless Apple CarPlay, and a hard-hitting 4-speaker, 200-watt audio system driven by a premium amplifier. Complete with dual bending valve front forks, adjustable emulsion rear suspension, and a full suite of standard cornering-enhanced rider safety electronics, this blacked-out masterpiece marries timeless hot-rod character with absolute open-road supremacy.

Specifications

  • Dimensions
    add remove
    • Length:
      103.1 in
    • Seat height, unladen:
      29.1 in
    • Rake (steering head):
      26
    • Wheelbase:
      64.0 in
    • Tires, front specifications:
      130/60B19 M/C 61H
    • Tires, rear specifications:
      180/55B18 M/C 80H
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      882 lbs
    • Weight, in running order:
      919 lb
    • Luggage capacity – volume:
      5.05 cu ft (0.143 m3)
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight® VVT 117
    • Bore:
      4.1 in
    • Stroke:
      4.5 in
    • Displacement:
      117.35 in3
    • Compression ratio:
      10.3:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-1-2 dual exhaust with tapered mufflers
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      130.5 ft-lb
    • Engine torque (RPM):
      3250
    • Horsepower:
      106 HP / 79 kW @ 4600 rpm
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      45 mpg (5.1 l/100 km)
  • Powertrain
    add remove
    • Primary drive:
      Belt, 32/68 ratio
    • Gear ratios (overall) 1st:
      9.593
    • Gear ratios (overall) 2nd:
      6.65
    • Gear ratios (overall) 3rd:
      4.938
    • Gear ratios (overall) 4th:
      4
    • Gear ratios (overall) 5th:
      3.407
    • Gear Ratios (overall) 6th:
      2.875
  • Chassis
    add remove
    • Front fork:
      1.9 in Dual Bending Valve
    • Rear shocks:
      3 in Dual adjustable emulsions suspension with remote preload adjustment on the left shock, and threaded preload on the right shock
    • Wheels, front type:
      Cast aluminum
    • Wheels, rear type:
      Cast aluminum
    • Brakes, type:
      Dual floating rotors (front), fixed rotor (rear)
    • Brakes, caliper type:
      1.3 in, 4-piston fixed dual axially mounted front, and single axially mounted rear
  • Infotainment
    add remove
    • Infotainment system:
      Skyline™ OS
    • Type:
      Full Color TFT
    • Watts per channel:
      50
    • Speakers:
      4
    • Speaker size:
      Two 6.5 in fairing speakers plus two 6.5 in Tour-pak speakers
    • AM:
      Standard
    • FM:
      Standard
    • SD Card, Flash Drive and MP3 — via USB Connection:
      Supported
    • Languages:
      Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice Recognition Languages: Phone functions only:
      Phone dependent
    • Voice Recognition Languages: Tuner / Media / Navigation:
      Danish, English (UK/USA default), French (Canada/France), German, Italian, Spanish (Mexico/Spain) & Swedish
    • Text-to-Speech (TTS) languages:
      Same as Languages list
    • Vehicle information screen:
      Standard
    • USB:
      USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage
    • Bluetooth:
      Phone/Media Player, Headset
