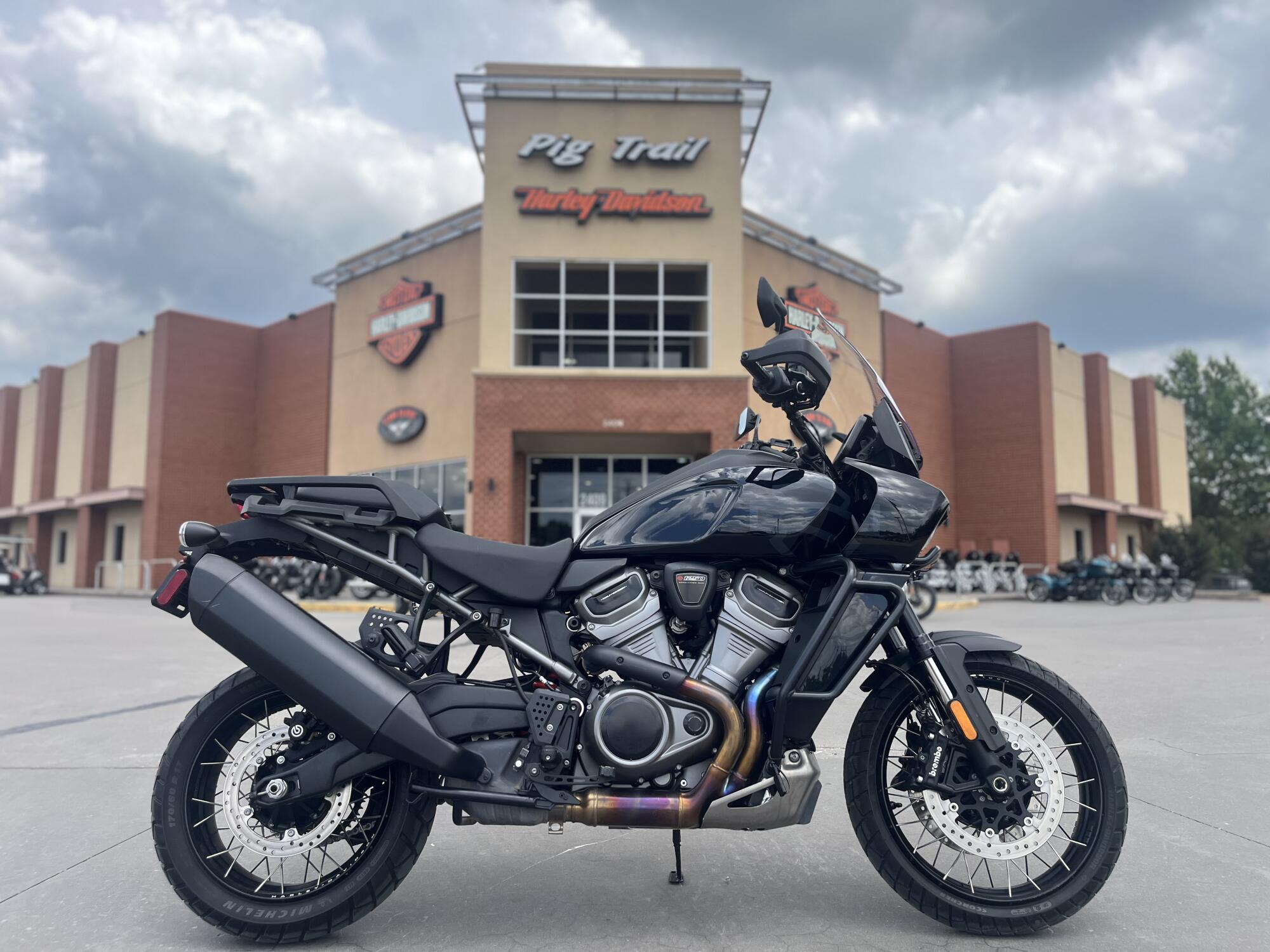

The 2021 Harley-Davidson Pan America 1250 Special marks the historic debut of Harley's premier adventure-touring flagship, offering an aggressive look in high-gloss Vivid Black. This deep finish coats the tank and minimalist bodywork, emphasizing a rugged silhouette equipped with a multi-position windscreen, brush guards, a sturdy aluminum skid plate, and a Daymaker® Adaptive Headlamp. Engineered to tackle both pavement and dirt, its highly advanced semi-active electronic suspension adjusts damping based on terrain and rider weight, working alongside the innovative Adaptive Ride Height (ARH) system that automatically lowers the seat at a stop for confident footing.

At its core sits the innovative Revolution® Max 1250 engine, a liquid-cooled structural V-Twin that punches out a thrilling 150 horsepower and 94 ft-lbs of torque. Acting as a stressed member of the chassis to minimize weight, this high-revving powerplant uses Variable Valve Timing (VVT) to deliver a highly flexible powerband that transitions seamlessly from highway cruising to technical off-road trails. The modern cockpit features a tilt-adjustable 6.8-inch color TFT touchscreen that manages Bluetooth navigation, customizable Ride Modes, and a complete suite of Cornering-Enhanced Rider Safety Enhancements.

Specifications

  • Dimensions
    add remove
    • Length:
      89.2 in
    • Seat height, unladen:
      33.5 in
    • Ground clearance:
      6.9 in
    • Rake (steering head):
      25
    • Trail:
      4.3 in
    • Wheelbase:
      62.2 in
    • Tires, front specifications:
      120/70R19 60V
    • Tires, rear specifications:
      170/60R17 72V
    • Fuel Capacity:
      5.6 gal
    • Oil capacity:
      4.49518 qt.
    • Weight, as shipped:
      527 lbs
    • Weight, in running order:
      559 lb
  • Engine
    add remove
    • Engine:
      Revolution® Max 1250
    • Bore:
      4.1 in
    • Stroke:
      2.8 in
    • Displacement:
      76.40 in3
    • Compression ratio:
      13.0:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-1-into-1; catalyst in header
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      94.4 ft-lb
    • Engine torque (RPM):
      6,750
    • Lean angle, right (deg.):
      42
    • Lean angle, left (deg.):
      42
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      0.00 mpg
  • Powertrain
    add remove
    • Primary drive:
      Gear, 49/89 ratio
    • Gear ratios (overall) 1st:
      13.11
    • Gear ratios (overall) 2nd:
      9.687
    • Gear ratios (overall) 3rd:
      7.509
    • Gear ratios (overall) 4th:
      6.057
    • Gear ratios (overall) 5th:
      5.08
    • Gear Ratios (overall) 6th:
      4.436
  • Chassis
    add remove
    • Wheels, optional style type:
      Annodized aluminum tubeless laced
    • Wheels, front type:
      Aluminum cast, satin black
    • Wheels, rear type:
      Aluminum cast, satin black
    • Brakes, caliper type:
      Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
  • Electric
    add remove
    • Lights (as per country regulation), indicator:
      LED Bullet Turn Signals
    • Gauges:
      6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, mu
  • Infotainment
    add remove
    • Type:
      Color TFT w/ Touch
    • Headset specifications (if equipped):
      Bluetooth
    • Hands-free mobile phone — via Bluetooth:
      Yes
    • Voice Recognition Languages: Phone functions only:
      Phone dependent
    • Voice Recognition Languages: Tuner / Media / Navigation:
      Phone dependent
    • Text-to-Speech (TTS) languages:
      Phone dependent
    • Rider / passenger intercom:
      Headset function only
    • Vehicle information screen:
      TPMS, Engine temp, Battery Voltage, Ambient Air Temp
    • USB:
      Charging and Instrument update, USB-C, 5V, 3A
    • Bluetooth:
      Yes
