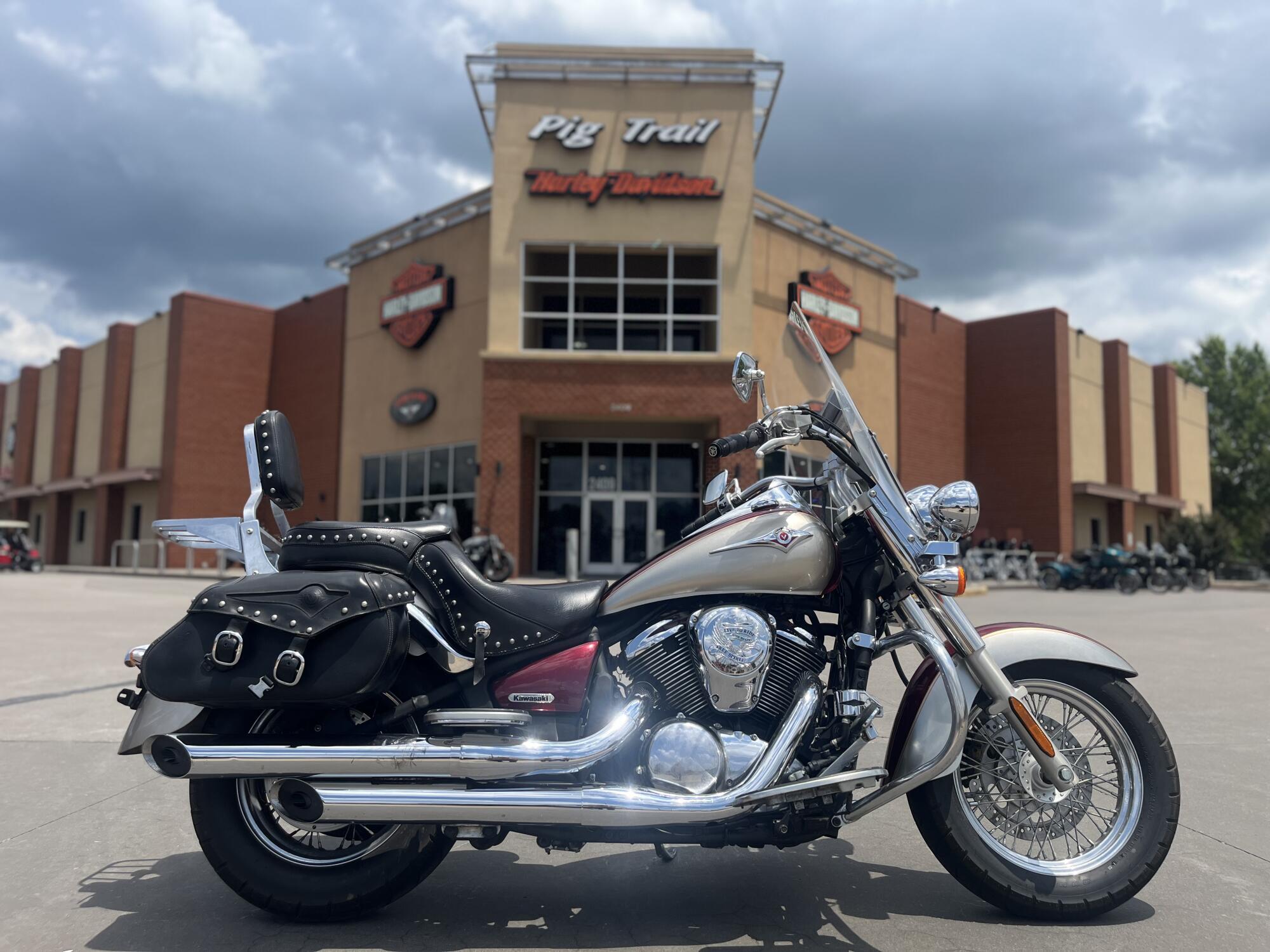

The 2009 Kawasaki Vulcan 900 Classic LT brings a premium, mid-size traditional cruiser experience to life with its distinct Candy Diamond Red and Metallic Titanium silver two-tone factory paint. This eye-catching finish wraps the spacious 5.3-gallon teardrop fuel tank and deeply valanced front and rear fenders, delivering a brilliant contrast against a heavy coating of factory chrome. Built straight from the factory floor for the open highway, the Classic LT variant upgrades the standard cruiser platform with touring-essential hardware—including an optically correct adjustable windshield, studded top-grain cowhide saddlebags with quick-release fasteners, and a matching studded passenger backrest.

At its mechanical core sits a liquid-cooled 903cc 55-degree V-Twin engine equipped with dual-throat electronic fuel injection. This highly efficient powerplant utilizes a four-valve cylinder head design and a gear-driven balancer to churn out 58 ft-lbs of immediate, low-end torque with incredibly low vibration. Power is delivered smoothly via a low-maintenance belt final drive and a 5-speed transmission, while a low 26.8-inch seat height and floorboards keep the rider in a relaxed, ultra-stable cruising posture.

Specifications

  • ENGINE
    add remove
    • Engine Type:
      V Twin
    • Cylinders:
      2
    • Engine Stroke:
      4-Stroke
    • Cooling:
      Liquid / Air
    • Valves:
      8
    • Valves Per Cylinder:
      4
    • Valve Configuration:
      SOHC
    • Bore (in):
      3.47
    • Stroke (in):
      2.92
    • Displacement (cc):
      903
    • Compression Ratio:
      9.5:1
    • Carburetion Brand:
      Keihin
    • Carburetor:
      No
    • Carburetion Type:
      Fuel Injected
    • Fuel Requirements:
      Regular
    • Turbocharged:
      No
    • Supercharged:
      No
    • Torque (Ft Lbs):
      58.2
  • TRANSMISSION
    add remove
    • Transmission Type:
      Manual
    • Number Of Speeds:
      5
    • Primary Drive (Rear Wheel):
      Belt
    • Reverse:
      No
  • TECHNICAL SPECIFICATIONS
    add remove
    • Length (in):
      97
    • Width (in):
      39.6
    • Height (in):
      58.3
    • Wheelbase (in):
      64.8
    • Ground Clearance (in):
      5.3
    • Dry Weight (lbs):
      595.4
    • Wet Weight (lbs):
      657.1
    • Fuel Capacity (gal):
      5.3
    • Engine Displacement to Weight (cc):
      1.52
  • SUSPENSION
    add remove
    • Front Suspension Type:
      Telescopic Fork
    • Front Suspension Size (in):
      1.6
    • Front Travel (in):
      5.9
    • Front Adjustable Fork Pre-Load:
      No
    • Front Adjustable Rebound Damping:
      No
    • Front Central Suspension Strut:
      No
    • Rear Suspension Brand Name:
      UNI-TRAK®
    • Rear Suspension Type:
      Twin Sided Swing Arm
    • Rear Travel (in):
      4.1
    • Rear Adjustable Shock / Spring Pre-Load:
      Yes
    • Rear Adjustable Rebound Damping:
      No
    • Number Rear Shock Absorbers:
      1
    • Steering Damper:
      No
    • Air Adjustable:
      No
  • WHEELS & TIRES
    add remove
    • Tube / Tubeless:
      Tubeless
    • Front Tire (Full Spec):
      130/90 R16
    • Rear Tire (Full Spec):
      180/70 R15
  • BRAKES
    add remove
    • Front Brake Type:
      Hydraulic Disc
    • Front Brake Diameter (in):
      10.7
    • Rear Brake Type:
      Hydraulic Disc
    • Rear Brake Diameter (in):
      9.5
  • SEATS
    add remove
    • Seat Type:
      Two-Piece
    • Seat Location:
      Driver and Passenger
    • Seat Material:
      Vinyl
    • Seat Height (in):
      26.8
    • Number Of Seats:
      2
