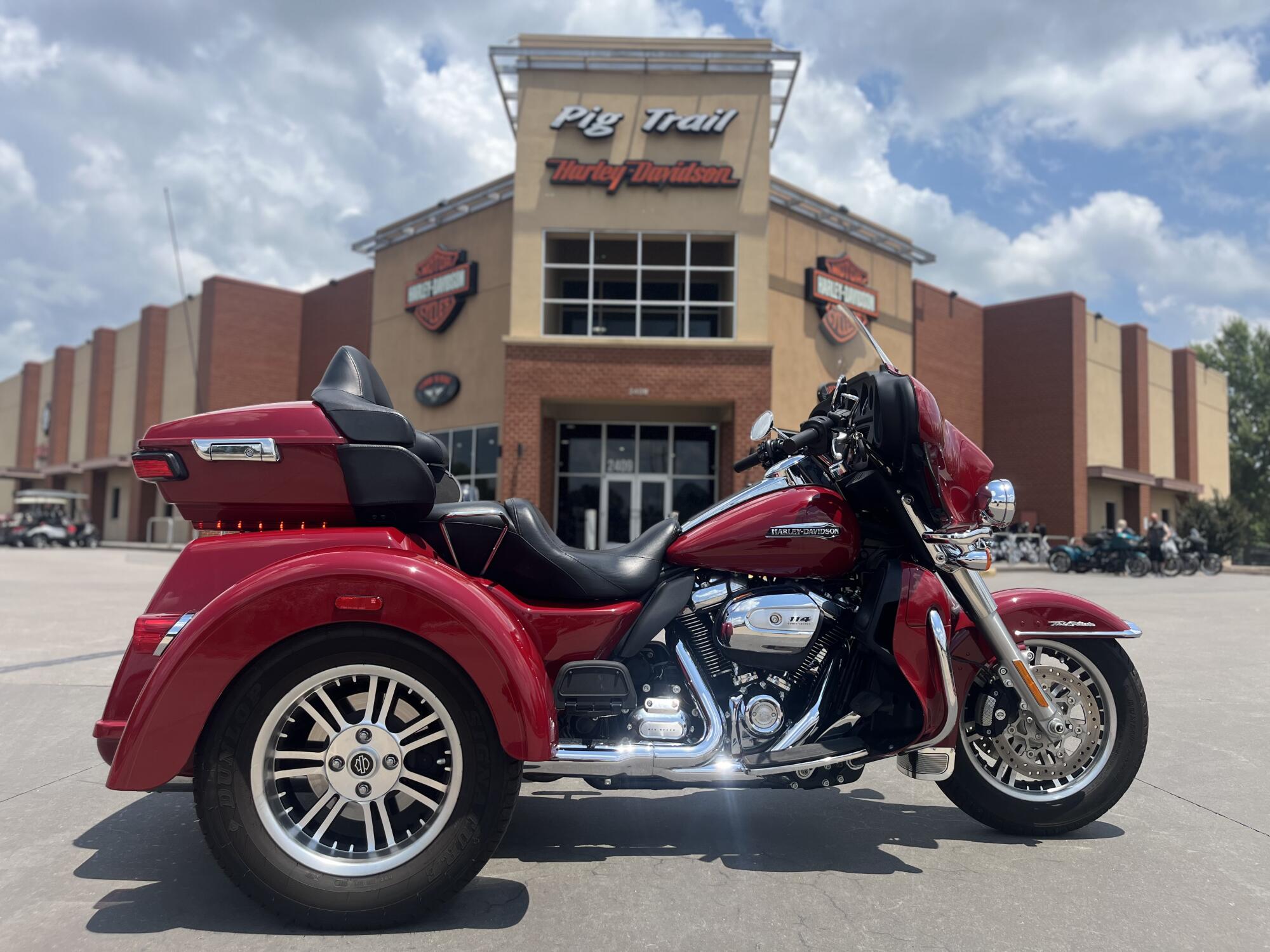

The 2021 Harley-Davidson Tri Glide Ultra delivers the ultimate three-wheeled grand touring experience, making a bold statement in high-gloss Billiard Red. This vibrant, classic factory finish drapes the expansive bodywork, from the batwing fairing to the spacious integrated trunk, contrasting beautifully with a brilliant premium chrome package. Built for maximum long-haul comfort, the Tri Glide Ultra features a luxurious passenger seat with integrated backrest, a splitstream air-venting system that reduces helmet buffeting, and 6.8 cubic feet of secure storage capacity between the trunk and tour-pak to pack all your cross-country gear without hassle.

At the heart of this stable long-distance runner is the high-performance Twin-Cooled™ Milwaukee-Eight® 114 engine, an 1868cc V-Twin powerplant that unleashes 118 ft-lbs of effortless low-end torque. This massive power is managed by a smooth 6-speed Cruise Drive transmission and an electric reverse gear for easy maneuvering in tight spaces. The premium cockpit is anchored by the Boom!™ Box GTS infotainment system, a glove-friendly color touchscreen with integrated navigation, Apple CarPlay®, and advanced rider aids including cornering-enhanced ABS, traction control, and electronic linked braking designed specifically for three-wheeled confidence.

Specifications

  • Dimensions
    add remove
    • Length:
      105.1 in
    • Seat height, unladen:
      28.9 in
    • Ground clearance:
      4.9 in
    • Rake (steering head):
      26
    • Trail:
      3.9 in
    • Wheelbase:
      65.7 in
    • Tires, front specifications:
      MT90B16 72H
    • Tires, rear specifications:
      P205/65R15 92T
    • Fuel Capacity:
      6.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      1,204 lbs
    • Weight, in running order:
      1243 lb
    • Luggage capacity – volume:
      6.8 cu ft (0.19 m3)
  • Engine
    add remove
    • Engine:
      Twin-Cooled™ Milwaukee-Eight® 114
    • Bore:
      4.0 in
    • Stroke:
      4.5 in
    • Displacement:
      113.99 in3
    • Compression ratio:
      10.5:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-1-2 dual exhaust with tapered mufflers
  • Performance
    add remove
    • Engine torque testing method:
      EC 134/2014
    • Engine torque:
      117.3 ft-lb
    • Engine torque (RPM):
      3250
    • Lean angle, right (deg.):
      N/A
    • Lean angle, left (deg.):
      N/A
    • Fuel economy testing method:
      EU 134/2014
    • Fuel economy:
      0.00 mpg
    • CO2 emissions testing method:
      EU 134/2014
    • CO2 emissions :
      158 g/km CO2
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      10.534
    • Gear ratios (overall) 2nd:
      7.302
    • Gear ratios (overall) 3rd:
      5.423
    • Gear ratios (overall) 4th:
      4.392
    • Gear ratios (overall) 5th:
      3.741
    • Gear Ratios (overall) 6th:
      3.157
  • Chassis
    add remove
    • Wheels, front type:
      Black, 7-spoke Cast Aluminum
    • Wheels, rear type:
      Black, 7-spoke Cast Aluminum
    • Brakes, caliper type:
      Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake
  • Electric
    add remove
    • Lights (as per country regulation), indicator:
      High Beam, running lights, front fender running lights, directional lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, security system, low fuel warning, reverse, park brake, fog/aux lamp indicator
    • Gauges:
      Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator
  • Infotainment
    add remove
    • Infotainment system:
      Boom!™ Box GTS
    • Type:
      Full Color TFT
    • Watts per channel:
      25
    • Speakers:
      4
    • Speaker size:
      5.25 inch/6.5 inch P&A Upgrade
    • Headset specifications (if equipped):
      16 - 64 ohms
    • AM:
      Standard
    • FM:
      Standard
    • Weather Band (WB):
      Standard
    • SD Card, Flash Drive and MP3 — via USB Connection:
      Supported
    • SiriusXM Presets:
      20 - P&A Upgrade (USA & Canada only)
    • Languages:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice Recognition Languages: Phone functions only:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Voice Recognition Languages: Tuner / Media / Navigation:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Text-to-Speech (TTS) languages:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Rider / passenger intercom:
      Standard
    • Vehicle information screen:
      Standard
    • USB:
      USB/MTP/iPod/iPhone
    • Bluetooth:
      Phone/Media Supported

Request Details

Required
Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

2021 Harley-Davidson® FLHTCUTG Tri Glide® Ultra Billiard Red 856209

856209
1HD1MAF19MB856209
Harley-Davidson®
Trike
Pre-owned
2021
2537 mi
Billiard Red
