The 2026 Road Glide turns heads with its dramatic Purple Abyss paint option, a deep, shifting finish that transforms under changing light. Under direct sunlight, this color reveals brilliant, deep violet metallic tones that morph into a rich, near-black shade as evening falls. The color coats the redesigned, frame-mounted Sharknose fairing, 6-gallon fuel tank, and sleek saddlebags. Riders can configure this look with either a traditional gleaming chrome package or a fully blacked-out mechanical trim. The signature profile is set off by integrated LED lighting and lightweight 19-inch front and 18-inch rear contrast-cut cast aluminum wheels.

Powering this modern tourer is the high-output Milwaukee-Eight® 117 V-Twin engine, pushing a massive 130 ft-lbs of low-end torque and 105 horsepower. Liquid-cooled cylinder heads maintain excellent engine and rider thermal comfort during slow urban crawls, while the 6-speed Cruise Drive transmission ensures effortless highway cruising. The dashboard is completely digitized around a sweeping 12.3-inch anti-glare TFT color touchscreen driven by Skyline™ OS. This advanced cockpit replaces analog gauges with customizable digital interfaces, packing in embedded navigation, selectable ride modes, Apple CarPlay, and a premium 200-watt fairing audio system.

Specifications

  • Dimensions
    add remove
    • Length:
      94.9 in
    • Seat height, unladen:
      28.3 in
    • Rake (steering head):
      26
    • Trail:
      6.8 in
    • Wheelbase:
      64.0 in
    • Tires, front specifications:
      130/60B19 M/C 61H
    • Tires, rear specifications:
      180/55B18 M/C 80H
    • Fuel Capacity:
      6.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      802 lbs
    • Weight, in running order:
      838 lb
    • Luggage capacity – volume:
      2.42 cu ft (0.069 m3)
    • Tire, type:
      Dunlop® Harley-Davidson Series, bias blackwall front and rear
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight® 117
    • Bore:
      4.1 in
    • Stroke:
      4.5 in
    • Displacement:
      117.35 in3
    • Compression ratio:
      10.3:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-1-2 dual exhaust with tapered mufflers
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      129.8 ft-lb
    • Engine torque (RPM):
      3250
    • Lean angle, right (deg.):
      32
    • Lean angle, left (deg.):
      32
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      44 mpg (5.3 l/100 km)
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.593
    • Gear ratios (overall) 2nd:
      6.65
    • Gear ratios (overall) 3rd:
      4.938
    • Gear ratios (overall) 4th:
      4
    • Gear ratios (overall) 5th:
      3.407
    • Gear Ratios (overall) 6th:
      2.875
  • Chassis
    add remove
    • Front fork:
      1.9 in. Dual Bending Valve
    • Rear shocks:
      3 in. Dual Outboard Emulsion with Preload Adjustability
    • Wheels, front type:
      Cast aluminum
    • Wheels, rear type:
      Cast aluminum
    • Brakes, type:
      Dual floating rotors (front), fixed rotor (rear)
    • Brakes, caliper type:
      1.3 in., 4-piston fixed dual axially mounted front, and single axially mounted rear
  • Infotainment
    add remove
    • Screen size:
      12.3 in
    • Infotainment system:
      Skyline™ OS
    • Type:
      Full Color TFT
    • Watts per channel:
      50
    • Speakers:
      2
    • Speaker size:
      Two 5.25 in. fairing speakers
    • AM:
      Standard
    • FM:
      Standard
    • SD Card, Flash Drive and MP3 — via USB Connection:
      Supported
    • Languages:
      Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice Recognition Languages: Phone functions only:
      Phone dependent
    • Text-to-Speech (TTS) languages:
      Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
    • Rider / passenger intercom:
      Rider and passenger headsets sold separately; VOX is available for H-D headsets
    • Vehicle information screen:
      Standard
    • USB:
      USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage
    • Bluetooth:
      Phone/Media Player, Headset

Request Details

Required
Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

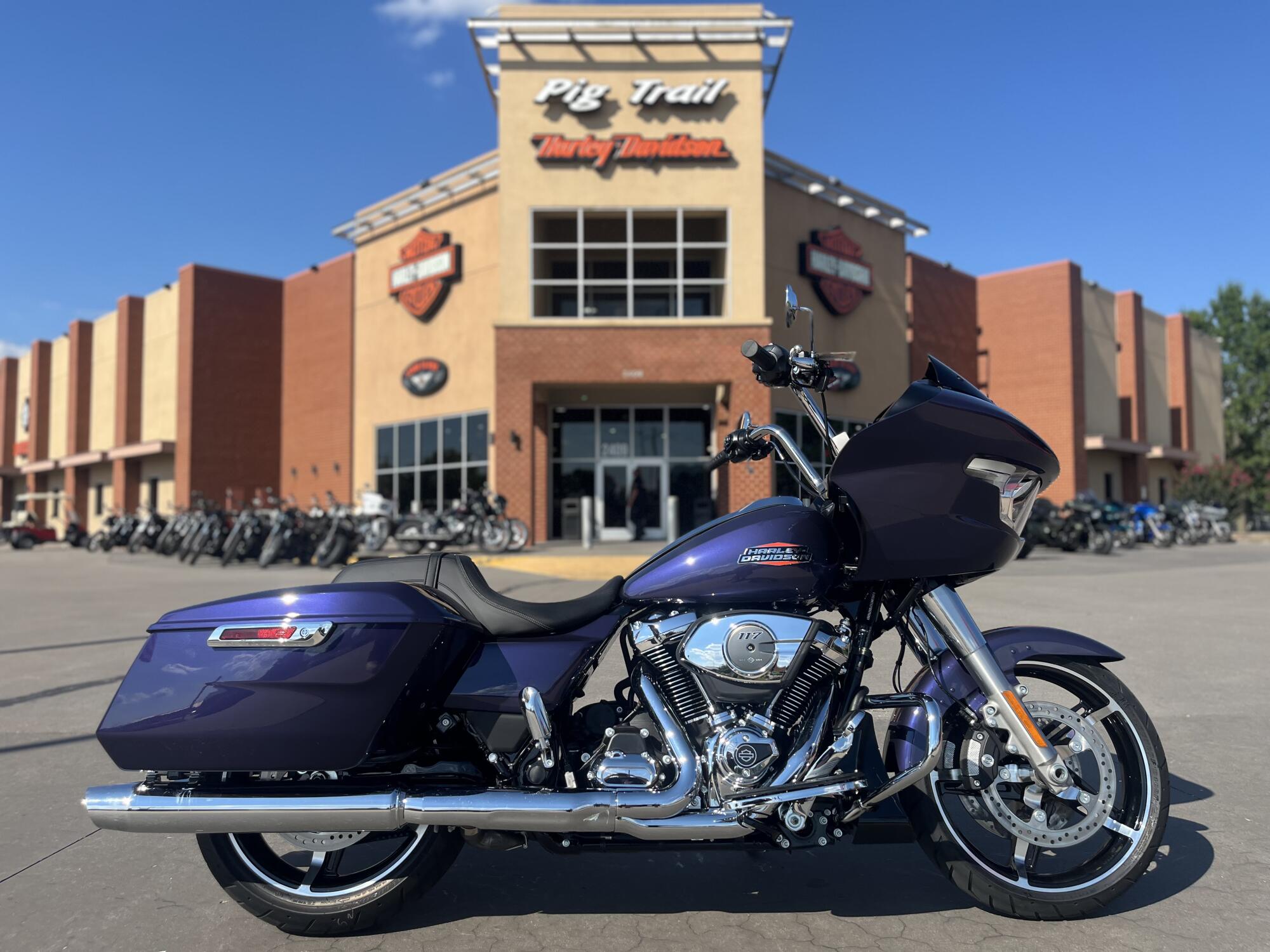

2026 Harley-Davidson® FLTRX Road Glide® Purple Abyss
