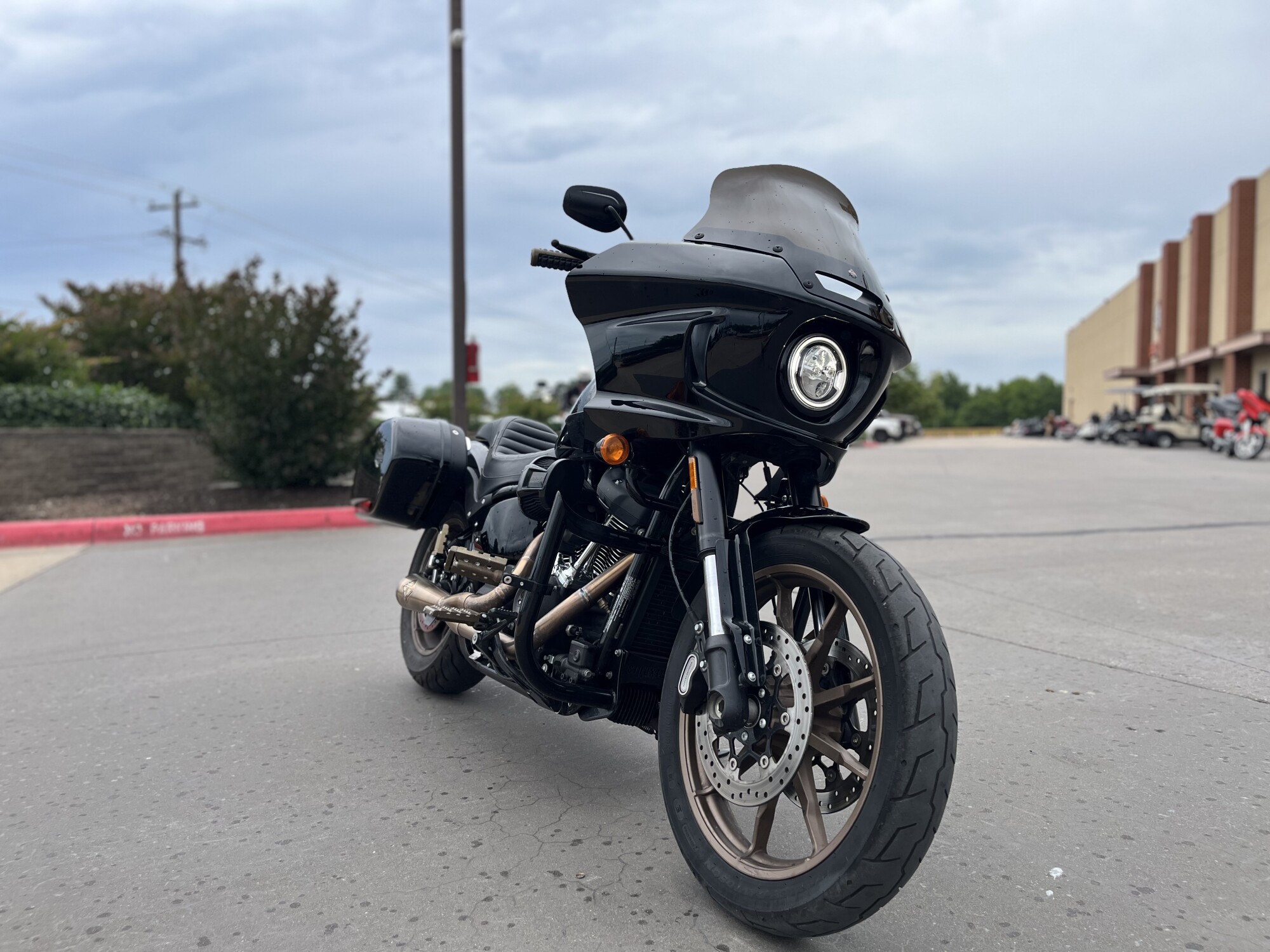

‹ Home › Inventory › 2024 Harley-Davidson® FXLRST Low Rider® ST Vivid Black 056097

The 2024 Harley-Davidson® Low Rider® ST in Vivid Black is a high-performance "West Coast" sport-tourer that perfectly blends aggressive street-riding geometry with long-haul capability. It is powered by the muscle-bound Milwaukee-Eight® 117 V-Twin engine, generating an impressive 125 ft-lb of torque and 103 HP. This powertrain features a tuned heavy-breather intake and a high-performance 2-into-1 exhaust designed to maximize low-to-mid-range acceleration. The bike's signature silhouette is defined by an aerodynamic, frame-mounted FXRT-inspired fairing that isolates wind buffet from the handlebars to greatly reduce highway fatigue. Optimized for solo performance out of the box, it features a solo seat, mid-mount foot controls, and compact, high-mounted removable saddlebags providing 1.9 cubic feet of lockable storage. Built on a rigid Softail® chassis, it comes factory-equipped with inverted front forks, a taller rear shock for an improved lean angle, and standard ABS and traction control for absolute confidence in tight corners.

Specifications

Dimensions

add remove
- Length:

  93.1 in
- Seat height, unladen:

  28.3 in
- Rake (steering head):

  28
- Trail:

  5.7 in
- Wheelbase:

  63.6 in
- Tires, front specifications:

  110/90B19,62H,BW
- Tires, rear specifications:

  180/70B16,77H,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  694 lbs
- Weight, in running order:

  721 lb
- Luggage capacity – volume:

  1.9 cu ft (0.05 m³)
- Tire, type:

  Michelin® Scorcher® "31" front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.2:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 offset shotgun; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  124.6 ft-lb
- Engine torque (RPM):

  3500
- Horsepower:

  103 HP / 77 kW @ 4750 rpm
- Lean angle, right (deg.):

  31.3
- Lean angle, left (deg.):

  31.3
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  47 mpg (5 l/100km)
- CO₂ emissions testing method:

  –
- CO₂ emissions :

  –
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Single cartridge 43 mm inverted with aluminum fork triple clamps; single rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Dark bronze, Radiate cast aluminum wheel
- Wheels, rear type:

  Dark bronze, Radiate cast aluminum wheel
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  All LED, low beam, high beam and signature position lamp, LED Zeppelin tail lamp, Incandescent bullet turn signals
- Gauges:

  2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
