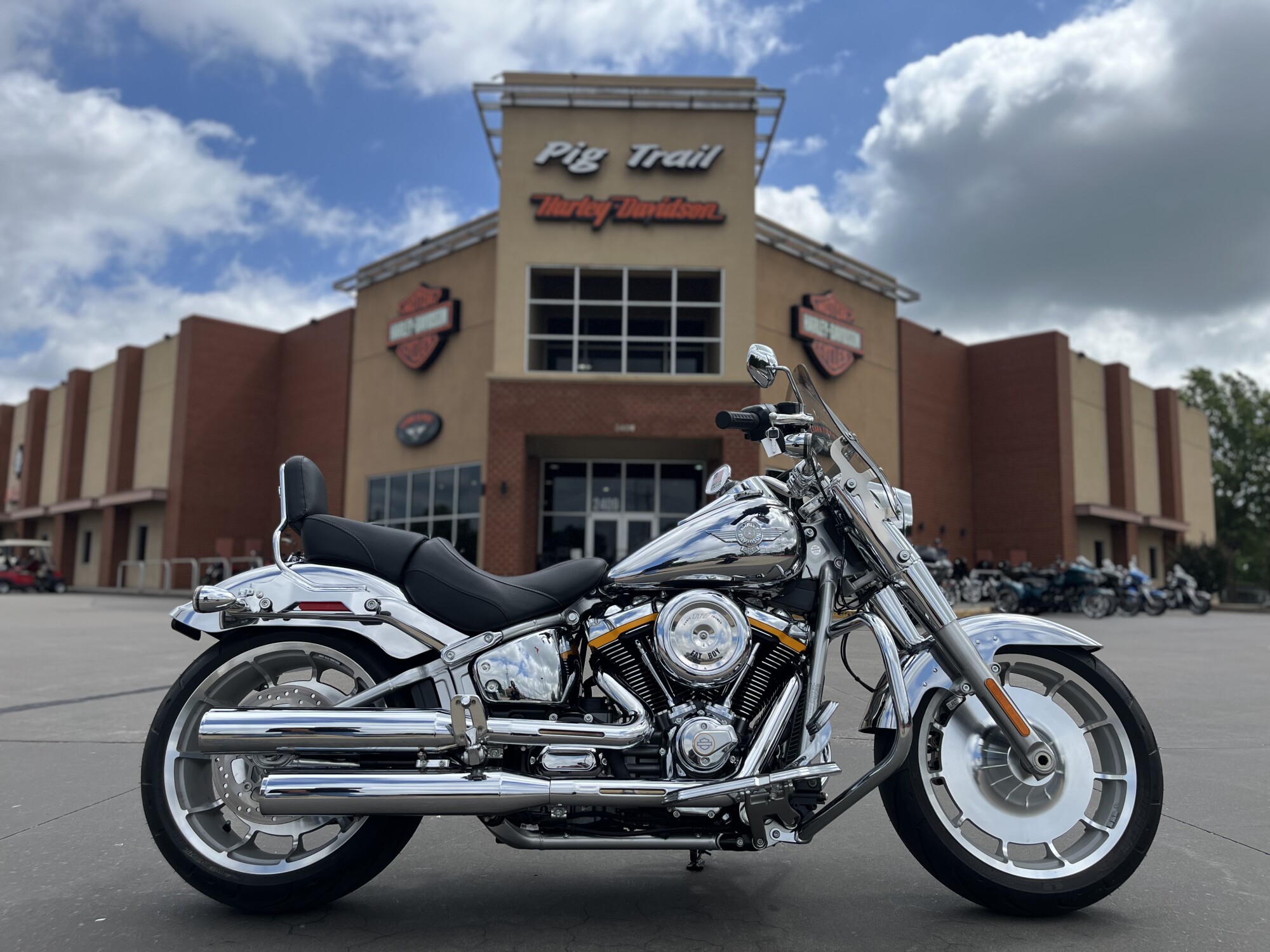

This extraordinary 2025 Harley-Davidson Fat Boy Gray Ghost stands as a magnificent, limited-production masterpiece, serving as the ultra-exclusive fifth installment of Harley-Davidson's prestigious Icons Motorcycle Collection. Built to celebrate the 35th anniversary of the original 1990 "Gray Ghost" that redefined cruiser design, this rare machine features a mind-bending, factory-applied Reflection finish. Utilizing a cutting-edge Physical Vapor Deposition (PVD) process, the fuel tank and fenders undergo a thin-film alloy coating in a vacuum before being sealed under a high-gloss clear coat—giving the entire motorcycle a breathtaking, mirror-like appearance of being machined out of a solid billet alloy and dipped in liquid chrome.

At its mechanical heart sits the high-performance Milwaukee-Eight™ 117 Custom V-Twin engine, an absolute brute of a powerplant that unleashes a fierce 122 ft-lbs of hard-hitting, low-end torque and 101 horsepower. This massive engine breathes through a nostalgic, 9-inch round center-bolt air cleaner that throws a direct nod back to the 1990 original, sending smooth power through a 6-speed Cruise Drive® transmission. To anchor its historical authenticity, the bike is built around a bright silver powder-coated frame and boasts classic yellow accents on the lower rocker covers, powertrain covers, and the tank console insert, perfectly replicating Willie G. Davidson’s legendary prototype styling cues.

True to the Fat Boy’s steamroller heritage, the profile is defined by a massive front end with a classic LED headlight nacelle, dual 18-inch machined Lakester cast aluminum solid disc wheels, a beefy 160mm front tire, and a monstrous 240mm rear tire. The nostalgic rider ergonomics are completed by a premium leather seat and tank strap featuring authentic hand-laced edging, retro tassels, and timeless winged tank medallions. While it screams vintage 1990s attitude, the technology underneath is completely modern, featuring a hidden rear monoshock with hydraulic preload adjustment, a USB-C power port, and a comprehensive suite of hidden rider electronics including Cornering-Enhanced ABS, Traction Control, and a Tire Pressure Monitoring System (TPMS). Limited to a numbered edition of only 1,990 units globally, this Reflection-finished icon is an instant, museum-grade collector's dream.

Specifications

  • Dimensions
    add remove
    • Length:
      93.1 in
    • Seat height, unladen:
      26.6 in
    • Ground clearance:
      4.9 in
    • Trail:
      4.1 in
    • Wheelbase:
      65.0 in
    • Tires, front specifications:
      160/60R18,70V,BW
    • Tires, rear specifications:
      240/40R18,79V,BW
    • Fuel Capacity:
      5.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      668 lbs
    • Weight, in running order:
      694 lb
    • Tire, type:
      Michelin® Scorcher 11 front and rear
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight® 117 Custom
    • Bore:
      4.1 in
    • Stroke:
      4.5 in
    • Displacement:
      117.35 in3
    • Compression ratio:
      10.3:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-2 staggered; catalyst in muffler
  • Performance
    add remove
    • Engine torque testing method:
      EC 134/2014
    • Engine torque:
      122.4 ft-lb
    • Engine torque (RPM):
      3000
    • Horsepower:
      101 HP / 75 kW @ 4800 rpm
    • Lean angle, right (deg.):
      25.6
    • Lean angle, left (deg.):
      25.6
    • Fuel economy testing method:
      EU 134/2014
    • Fuel economy:
      49 mpg (4.8 l/100 km)
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.311
    • Gear ratios (overall) 2nd:
      6.454
    • Gear ratios (overall) 3rd:
      4.793
    • Gear ratios (overall) 4th:
      3.882
    • Gear ratios (overall) 5th:
      3.307
    • Gear Ratios (overall) 6th:
      2.79
  • Chassis
    add remove
    • Front fork:
      Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
    • Rear shocks:
      Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
    • Wheels, front type:
      Machined, Lakester cast aluminum
    • Wheels, rear type:
      Machined, Lakester cast aluminum
    • Brakes, type:
      Front and rear silver, Split 7-spoke floating rotors
    • Brakes, caliper type:
      4-piston fixed front and 2-piston floating rear
