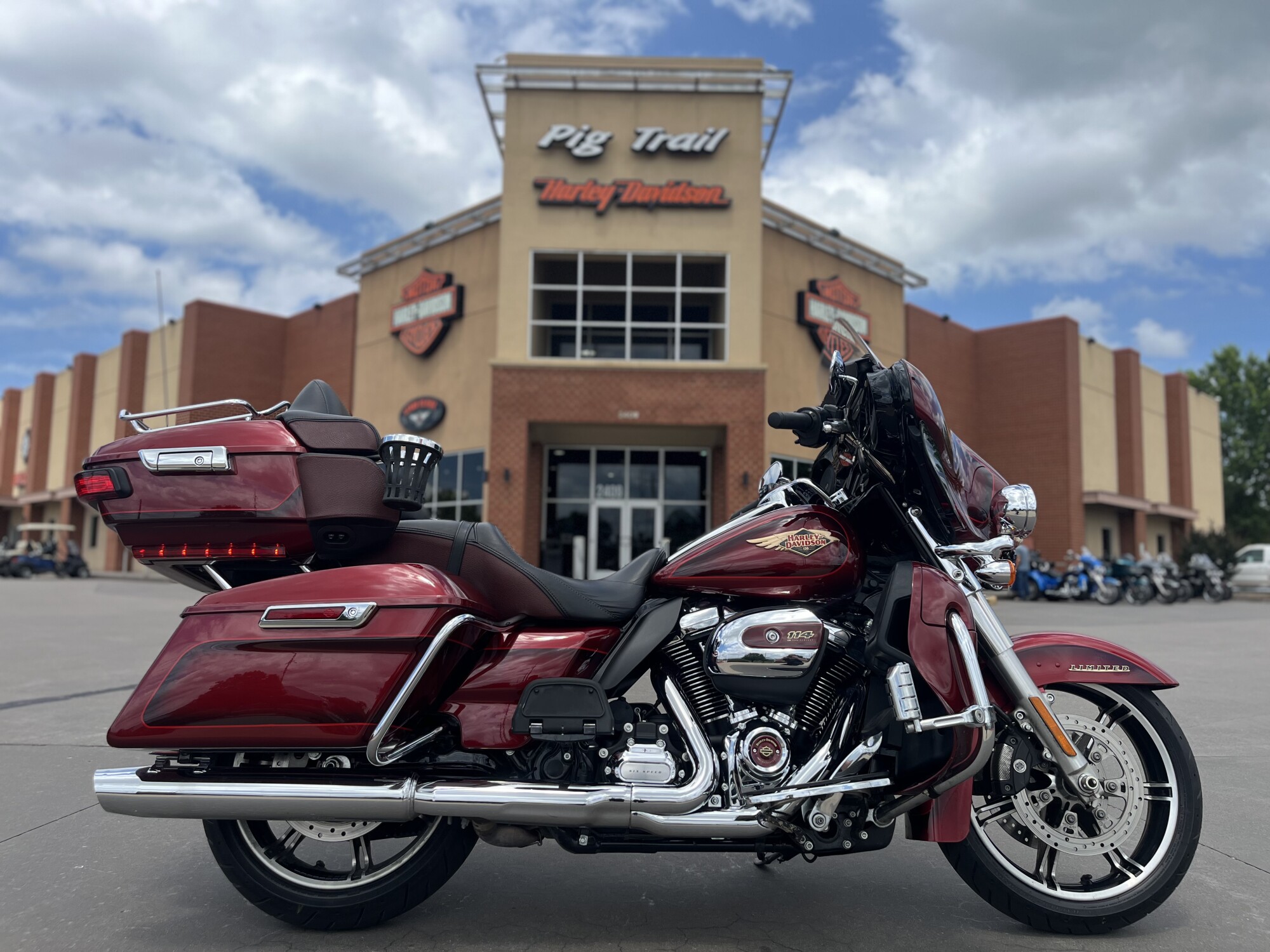

This extraordinary 2023 Harley-Davidson Ultra Limited stands as a breathtaking, highly collectible masterpiece, serving as a flagship release in celebration of Harley-Davidson's historic 120th Anniversary. Draped in the exclusive, limited-production Heirloom Red Fade paint scheme, this premium bagger features a deeply complex finish where a vibrant, candy-style red panels subtly transition into deep black borders, intricately outlined by a bright gold pinstripe. The masterpiece is further distinguished by a magnificent, Art Deco-inspired speedbird tank medallion housing a subtle gold Bar & Shield logo, special laser-etched serialization on the console, and a luxurious blood-red seat insert that sets this anniversary edition miles apart from standard models.

At its mechanical heart sits the formidable Milwaukee-Eight™ 114 V-Twin engine, a rubber-mounted powerhouse that uncoils 122 ft-lbs of hard-hitting, low-end torque for effortless highway cruising even when fully loaded with a passenger and gear. Power flows seamlessly through a smooth 6-speed Cruise Drive® transmission, while the iconic fork-mounted Batwing fairing cuts through the wind to isolate the handlebars from buffeting. The grand-touring cockpit is completely loaded, housing a high-resolution Boom!™ Box GTS Infotainment System with a color touchscreen, premium navigation, crisp Bluetooth connectivity, and a hard-hitting 4-speaker audio system. Built for ultimate cross-country luxury, the machine combines a spacious King Tour-Pak® luggage carrier and sleek hard saddlebags for massive cargo capacity, complemented by heated handgrips, electronic cruise control, striking contrast-cut anniversary wheels, and the advanced Reflex™ Defensive Rider Systems (RDRS) safety package for absolute open-road confidence.

Specifications

  • Dimensions
    add remove
    • Length:
      102.4 in
    • Seat height, unladen:
      29.1 in
    • Ground clearance:
      5.3 in
    • Rake (steering head):
      26
    • Trail:
      6.7 in
    • Wheelbase:
      64.0 in
    • Tires, front specifications:
      BW 130/70B18 63H
    • Tires, rear specifications:
      BW 180/55B18 80H
    • Fuel Capacity:
      6.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      880 lbs
    • Weight, in running order:
      917 lb
    • Luggage capacity – volume:
      4.7 cu ft (0.132 m3)
  • Engine
    add remove
    • Engine:
      Twin-Cooled™ Milwaukee-Eight™ 114
    • Bore:
      4.0 in
    • Stroke:
      4.5 in
    • Displacement:
      113.99 in3
    • Compression ratio:
      10.5:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-1-2 dual exhaust with tapered mufflers
  • Performance
    add remove
    • Engine torque testing method:
      EC 134/2014
    • Engine torque:
      122.4 ft-lb
    • Engine torque (RPM):
      2750
    • Lean angle, right (deg.):
      32
    • Lean angle, left (deg.):
      32
    • Fuel economy testing method:
      EU 134/2014
    • Fuel economy:
      42.8 mpg (5.5 l/100km)
    • CO2 emissions testing method:
      EU 134/2014
    • CO2 emissions :
      146 g/km CO2
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.593
    • Gear ratios (overall) 2nd:
      6.65
    • Gear ratios (overall) 3rd:
      4.938
    • Gear ratios (overall) 4th:
      4
    • Gear ratios (overall) 5th:
      3.407
    • Gear Ratios (overall) 6th:
      2.875
  • Chassis
    add remove
    • Wheels, optional style type:
      Gloss Black Slicer II
    • Wheels, front type:
      Slicer II cast aluminum with clear coat
    • Wheels, rear type:
      Slicer II cast aluminum with clear coat
    • Brakes, caliper type:
      32 mm, 4-piston fixed front and rear
  • Electric
    add remove
    • Lights (as per country regulation), indicator:
      High beam, running lights, front fender running lights, directional lights, neutral, low oil pressure, engine diagnostics, accessory, speakers, turn signals, security system, gear indication, battery, low fuel warning, cruise control, ABS (if equipped), f
    • Gauges:
      Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
  • Infotainment
    add remove
    • Infotainment system:
      Boom!™ Box GTS
    • Type:
      Full Color TFT
    • Watts per channel:
      25
    • Speakers:
      4
    • Speaker size:
      5.25 inch standard
    • Headset specifications (if equipped):
      16-64 ohms
    • AM:
      Standard
    • FM:
      Standard
    • Weather Band (WB):
      Standard
    • SD Card, Flash Drive and MP3 — via USB Connection:
      Supported
    • SiriusXM Presets:
      20 - P&A Upgrade (USA & Canada only)
    • Languages:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice Recognition Languages: Phone functions only:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Voice Recognition Languages: Tuner / Media / Navigation:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Text-to-Speech (TTS) languages:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Rider / passenger intercom:
      Standard
    • Vehicle information screen:
      Standard
    • USB:
      USB/MTP/iPod/iPhone
    • Bluetooth:
      Phone/Media Supported
