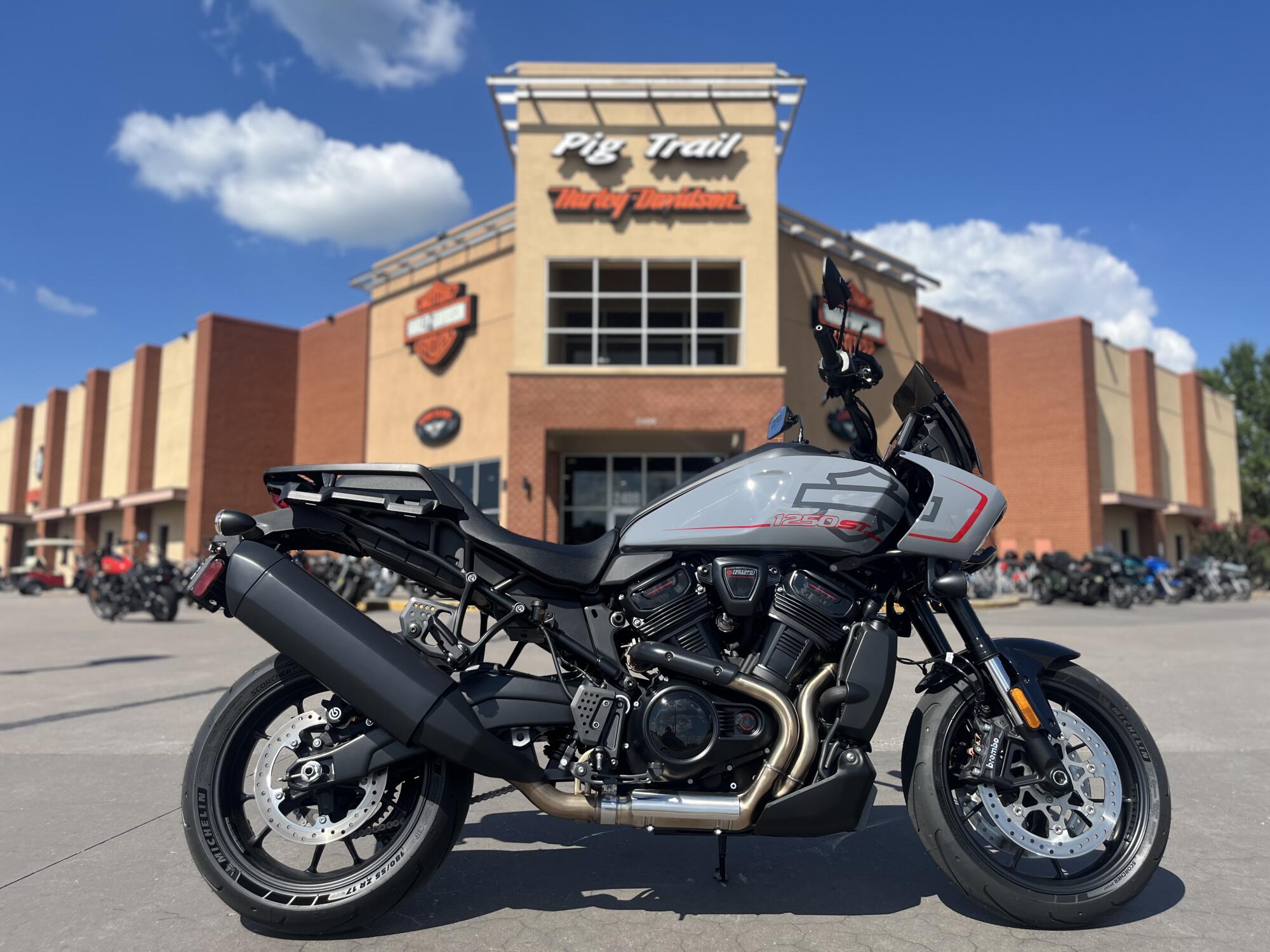

The 2026 Pan America 1250 ST brings rugged, industrial performance to the adventure-touring segment in a clean, understated Dark Billiard Gray. This finish coats the angular front fairing and fuel tank, complemented by a stripped-down, athletic silhouette that prioritizes utility. The ST features lightweight black cast wheels, a minimalist seat, and an adjustable windscreen designed for long-range comfort both on and off the pavement.

Under the chassis sits the liquid-cooled Revolution® Max 1250, serving as a stressed member to keep the bike agile. It churns out a massive 150 horsepower and 94 ft-lbs of torque, with Variable Valve Timing (VVT) ensuring broad, responsive power delivery across any terrain. The cockpit is dominated by a 6.8-inch TFT touchscreen, putting Bluetooth navigation, custom ride modes, and comprehensive cornering safety enhancements right at your fingertips.

Specifications

  • Dimensions
    add remove
    • Length:
      88.2 in
    • Ground clearance:
      6.7 in
    • Rake (steering head):
      25
    • Trail:
      3.7 in
    • Wheelbase:
      62.2 in
    • Tires, front specifications:
      120/70ZR17 58W
    • Tires, rear specifications:
      180/55ZR17 73W
    • Fuel Capacity:
      5.6 gal
    • Oil capacity:
      4.75 qt.
    • Weight, as shipped:
      511 lbs
    • Weight, in running order:
      546 lb
  • Engine
    add remove
    • Engine:
      Revolution® Max 1250
    • Bore:
      4.1 in
    • Stroke:
      2.8 in
    • Displacement:
      76.40 in3
    • Compression ratio:
      13.0:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-1-into-1; catalyst in header
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      91.5 ft-lb
    • Engine torque (RPM):
      6750
    • Horsepower:
      149 HP / 111 kW @ 8750 rpm
    • Lean angle, right (deg.):
      37
    • Lean angle, left (deg.):
      37
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      46 mpg (5.1 l/100 km)
  • Powertrain
    add remove
    • Primary drive:
      Gear, 49/89 ratio
    • Gear ratios (overall) 1st:
      13.11
    • Gear ratios (overall) 2nd:
      9.687
    • Gear ratios (overall) 3rd:
      7.509
    • Gear ratios (overall) 4th:
      6.057
    • Gear ratios (overall) 5th:
      5.08
    • Gear Ratios (overall) 6th:
      4.436
  • Chassis
    add remove
    • Front fork:
      47mm inverted fork with electronically adjustable preload and manually adjustable compression and rebound. Aluminum fork triple clamps
    • Rear shocks:
      Linkage-mounted monoshock with automatic electronic preload control and manually adjustable compression & rebound damping
    • Wheels, front type:
      Aluminum cast, satin black
    • Wheels, rear type:
      Aluminum cast, satin black
    • Brakes, type:
      Front: dual rotor, floating, hub mounted; Rear: solid uniform expansion rotor
    • Brakes, caliper type:
      Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
  • Infotainment
    add remove
    • Type:
      Color TFT w/ Touch
    • Headset specifications (if equipped):
      Bluetooth
    • Voice Recognition Languages: Phone functions only:
      Phone dependent
    • Voice Recognition Languages: Tuner / Media / Navigation:
      Phone dependent
    • Text-to-Speech (TTS) languages:
      Phone dependent
    • Rider / passenger intercom:
      Headset function only
    • Vehicle information screen:
      TPMS, Engine temp, Battery Voltage, Ambient Air Temp
    • USB:
      Charging and Instrument update, USB-C, 5V, 3A
    • Bluetooth:
      Phone/Media Supported
